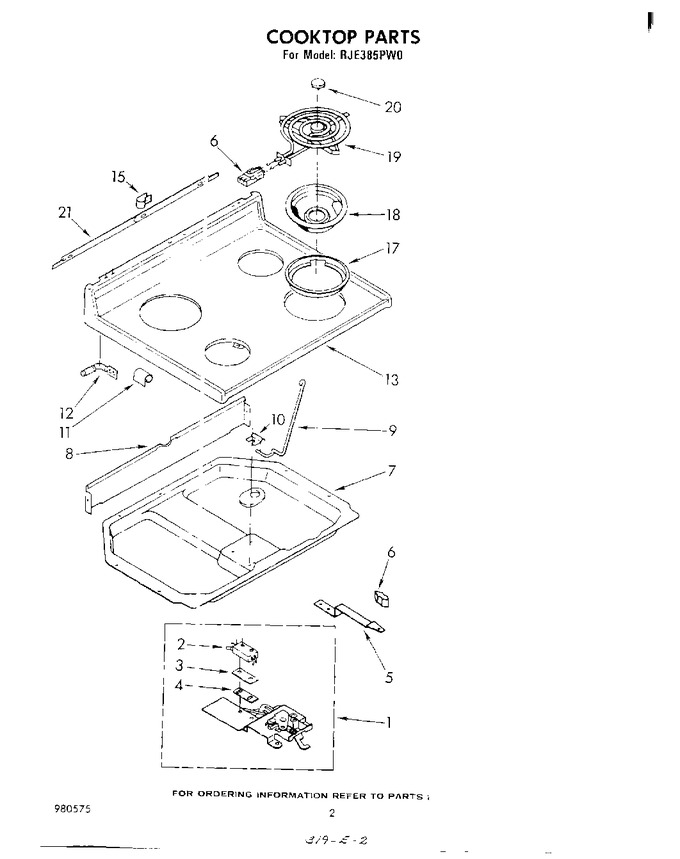

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
1	328585		Latch Assembly (pyro)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	310100		Terminal		Appelez-nous	-
5	307976		Handle, Latch		Appelez-nous	-
5	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 8.11
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
5	311056		Screw (2)		Appelez-nous	-
6	307977		Knob, Latch		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (6)   (Replaces: 309112)				$ 8.25
7	307929		Burner Box		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
8	307973		Shield, Wiring		Appelez-nous	-
9	WP681414		Screw, 10-32 Hex (ground) (3)   (Replaces: 343631)			Immediately	$ 8.47
9	307968		Rod, Cooktop		Appelez-nous	-
10	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 8.25
10	307967		Retainer, Cooktop		Appelez-nous	-
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
12	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 8.30
12	307966		Pin, Cooktop (2)		Appelez-nous	-
13	307866		Cooktop (white)		Appelez-nous	-
13	307863		Cooktop (harvest Gold)		Appelez-nous	-
13	307871		Cooktop (almond)		Appelez-nous	-
13	307865		Cooktop (new Avocado)		Appelez-nous	-
13	307864		Cooktop (coffee)		Appelez-nous	-
14	328870		Cooktop Trim R.h.		Appelez-nous	-
14	328871		Cooktop Trim L.h.		Appelez-nous	-
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 11.76
15	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 8.30
16	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 8.30
16	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 16.09
17	W10858781		Adapter Ring 8`` (2)   (Replaces: 306786)				$ 99.92
17	W10854470		Adapter Ring 6`` (2)   (Replaces: 306785)				$ 94.93
18	W10291024		Reflector Pan 6`` (2)   (Replaces: 306789)			Immediately	$ 55.44
18	W10291024		Reflector Pan (8`` (2))   (Replaces: 306790)			Immediately	$ 55.44
19	WP660532		Unit, Surface (6`` L.f. & R.r. (alternate) (2))   (Replaces: 309250)			Immediately	$ 41.00
19	WP660532		Unit, Surface (6`` L.f. & R.r. (alternate) (2))   (Replaces: 309334)			Immediately	$ 41.00
19	WP660533		Unit, Surface (8`` R.f. & L.r. (alternate) (2))   (Replaces: 309214)			Immediately	$ 43.86
19	WP660533		Unit, Surface (8`` R.f. & L.r. (alternate) (2) (includes Illus. 19))   (Replaces: 309340)			Immediately	$ 43.86
20	309195		Medallion (4)		Appelez-nous	-
21	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 8.30
21	309232		Barrier Strip		Appelez-nous	-
