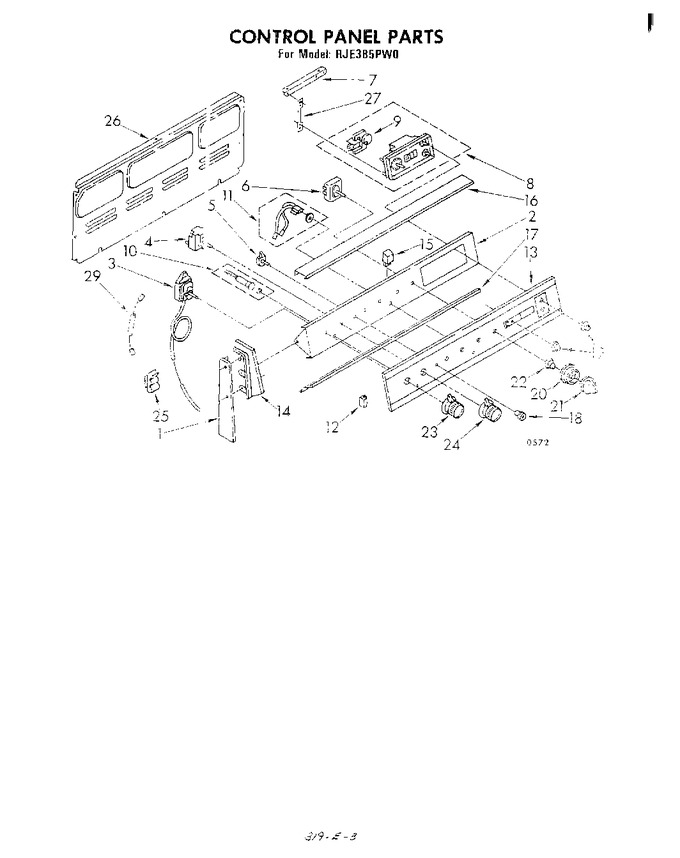

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | End Trim (screw, 10-16 X 1/2 (4)) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 1 | 308854 | End Trim (r.h.) |
|
- | |||||
| 1 | 308858 | End Trim (l.h.) |
|
- | |||||
| 1 | WP3390631 | End Trim (screw, 10a X 3/8 (2)) (Replaces: 309112) |
|
$ 8.25 | |||||
| 2 | 311237 | Control Bracket |
|
- | |||||
| 2 | 307831 | Screw, 8a X 5/8 (4) |
|
- | |||||
| 3 | 310019 | Thermostat |
|
- | |||||
| 3 | 487384 | Screw, 6-32 X 1/4 (2) |
|
- | |||||
| 4 | WP486579 | Screw, 8-32 (Replaces: 311865) |
|
$ 7.89 | |||||
| 4 | 310008 | Selector Switch (5 Position) |
|
- | |||||
| 5 | 308829 | Switch, Oven Light |
|
- | |||||
| 5 | 255912 | Nut, 3/8 X 27 Hex |
|
- | |||||
| 6 | WP3149404 | Switch, Infinite (use W/6`` Surface Unit (2)) (Replaces: 311847) |
|
Immediately | $ 61.45 | ||||
| 6 | WP3149400 | Switch, Infinite (use W/8`` Surface Unit (2)) (Replaces: 311846) |
|
Immediately | $ 90.51 | ||||
| 6 | WP486579 | Switch, Infinite (screw, 8-32 (8)) (Replaces: 311865) |
|
$ 7.89 | |||||
| 7 | 254225 | Screw, 8 X 1/4 (4) |
|
- | |||||
| 7 | 311240 | Angle, Timer Mounting (2) |
|
- | |||||
| 8 | 254225 | Screw, 8 X 1/4 (4) |
|
- | |||||
| 8 | 310325 | Timer, Digital (includes Illus. 9) |
|
- | |||||
| 8 | 308846 | Palnut, Timer 10-32 (4) |
|
- | |||||
| 9 | 308594 | Motor, Timer |
|
- | |||||
| 10 | 310393 | Oven Clean Light (includes Lens) |
|
- | |||||
| 10 | 310962 | Light, Indicator (lock & Bake) |
|
- | |||||
| 11 | 310327 | Surface Unit Indicator Light (includes Lens) |
|
- | |||||
| 12 | 255859 | Channel, Rubber (2) |
|
- | |||||
| 13 | 311241 | Control Panel, Glass |
|
- | |||||
| 14 | 311234 | End Cap (r.h.) |
|
- | |||||
| 14 | 254225 | End Cap (screw, 8 X 1/4 (2)) |
|
- | |||||
| 14 | 311236 | End Cap (l.h.) |
|
- | |||||
| 15 | 311862 | Support, Trim |
|
- | |||||
| 16 | 254225 | Screw, 8 X 1/4 (2) |
|
- | |||||
| 16 | 311243 | Trim, Top |
|
- | |||||
| 17 | 254225 | Screw, 8 X 1/4 (2) |
|
- | |||||
| 17 | 311244 | Trim, Bottom |
|
- | |||||
| 18 | 308784 | Bezel, Switch |
|
- | |||||
| 19 | 255853 | Knob, Timer (3) |
|
- | |||||
| 20 | 307456 | Bezel, Control Knob (4) |
|
$ 31.10 | |||||
| 21 | WP307458 | Knob, Control (4) (Replaces: 307458) |
|
$ 20.07 | |||||
| 22 | 307828 | Spring, Bezel (4) |
|
- | |||||
| 23 | 328709 | Knob, Thermostat |
|
- | |||||
| 24 | 328707 | Knob, Selector |
|
- | |||||
| 25 | 309211 | Tube Clip |
|
- | |||||
| 26 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 26 | 308157 | Cover, Rear |
|
- | |||||
| 27 | 311239 | Plate, Timer Mounting |
|
- | |||||
| 29 | 328923 | Resistor & Terminal Assembly |
|
- |
