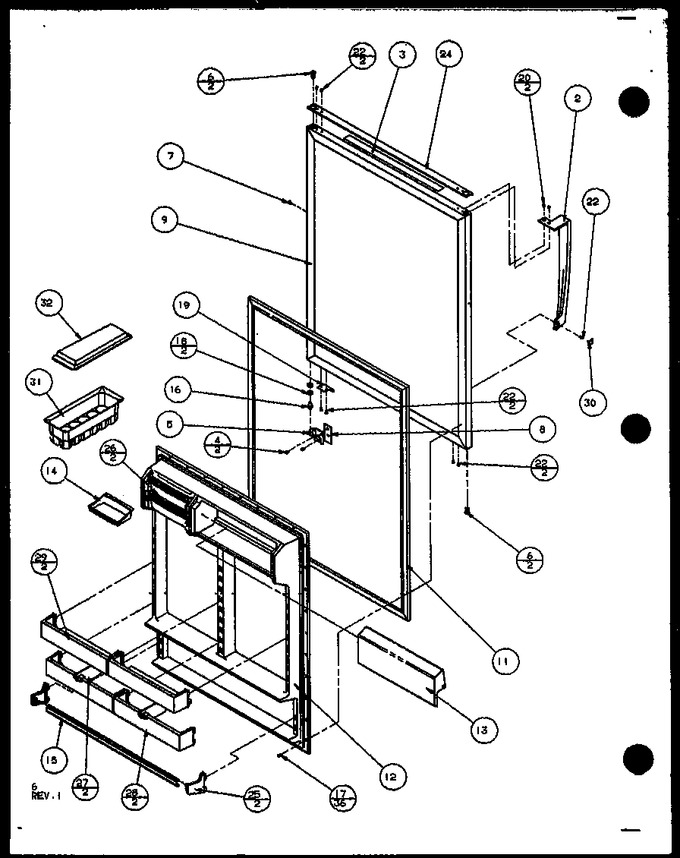

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	10253508		Ref Handle Assy Bk		Appelez-nous	-
3	M0275163		Tape Per Roll		Appelez-nous	-
4	WP67006715		Screw   (Replaces: M0233847)				$ 7.19
5	10163607		Btm Hinge Brkt E		Appelez-nous	-
6	10392602		Bushing		Appelez-nous	-
6	10392601		Bushing		Appelez-nous	-
7	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
7	M0310714		Plug		Appelez-nous	-
8	B5744802		Shim		Appelez-nous	-
8	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
8	B5744804		Shim, Bottom Hinge		Appelez-nous	-
8	B5744803		Shim		Appelez-nous	-
9	10253904Q		Assy, Refr Door		Appelez-nous	-
9	10253906Q		L Ref Dr As Cfc11		Appelez-nous	-
11	D7605107		Gasket		Appelez-nous	-
12	D7652304		Inner Dr Panel-ref		Appelez-nous	-
13	D7604419		Door Dairy		Appelez-nous	-
14	10310901		Tray, Butter		Appelez-nous	-
15	C8907218		Retainer, Pkg		Appelez-nous	-
16	C8814901		Pin, Hinge K		Appelez-nous	-
17	M0219730		Screw				$ 7.65
18	M0274049		Washer		Appelez-nous	-
19	10266101		Stop Door		Appelez-nous	-
20	WPW10348409		Screw   (Replaces: M0222429)			Immediately	$ 7.76
22	WPW10348409		Mounting Screw   (Replaces: M0203944)			Immediately	$ 7.76
24	D3958306		Cap Door		Appelez-nous	-
28	D7574513		Ret Cont. Pkg V		Appelez-nous	-
29	D7565413		Door Shelf V		Appelez-nous	-
30	10201808		Cover, Handle Screw-blk		Appelez-nous	-
31	D7587812		Tray Egg		Appelez-nous	-
