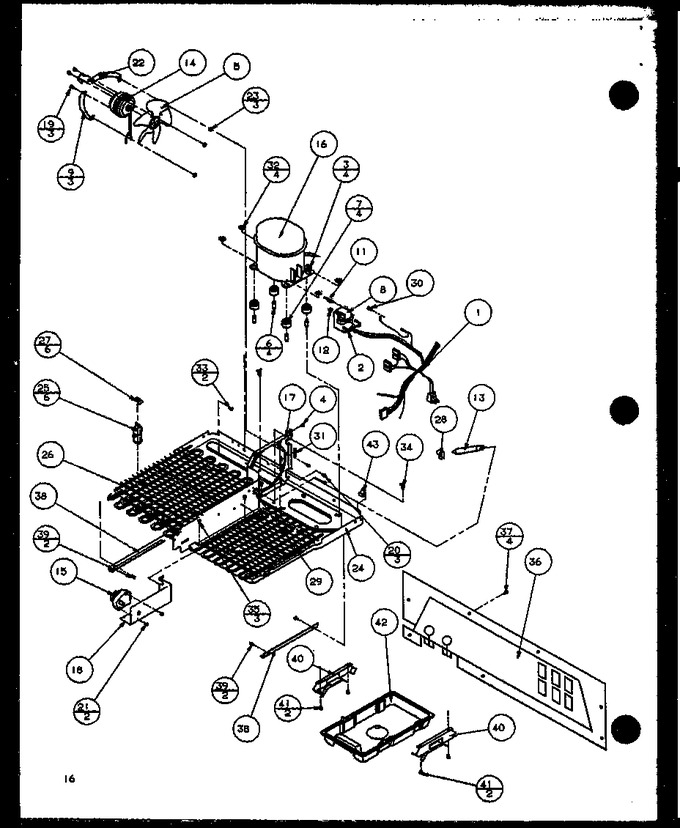

85868 (BOM: P1117304W L) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	10354701	Harness. M.c	Appelez-nous	-
2	A3041801	Strap K	Appelez-nous	-
3	B8365302	Washer	Appelez-nous	-
4	WP489069	Screw-sd (Replaces: M0233704)		Immediately	$ 7.86
5	B5742601	Blade, Fan	Appelez-nous	-
6	A3072001	Sleeve K	Appelez-nous	-
7	WPW10169124	Grommet (Replaces: B8333401)		Immediately	$ 7.19
8	B0559501	Cover K	Appelez-nous	-
9	C8982101	Bracket, Cond Motor	Appelez-nous	-
11	C8866906	Overload	Appelez-nous	-
12	C3553407	Relay	Appelez-nous	-
13	4007A	Drier (Replaces: B2150502)		Immediately	$ 15.05
14	833697	Motor, Fan (Replaces: D7584001)		Immediately	$ 88.15
15	R0168027	Kit, Defrost Timer (Replaces: 10129303)		Immediately	$ 152.25
16	W10439652	Compressor (Replaces: D7743203)			$ 421.14
17	D7691002	Cond. Fan Shrd	Appelez-nous	-
18	D7752701	Bracket, Timer	Appelez-nous	-
19	M0223803	Screw	Appelez-nous	-
20	M0221332	Screw, Shoulder	Appelez-nous	-
21	M0218118	Screw	Appelez-nous	-
22	WPW10339879	Tie (Replaces: M0321202)			$ 7.90
23	M0500107	Grommet K	Appelez-nous	-
24	D7595411	Base Pan - Ptd	Appelez-nous	-
25	B8346301	Spacer Cond.	Appelez-nous	-
26	D7654301	Condenser Pntd	Appelez-nous	-
27	M0293703	Speednut	Appelez-nous	-
28	M0104002	Clamp-drier	Appelez-nous	-
29	A9008301	Felt	Appelez-nous	-
30	M0253916	Screw	Appelez-nous	-
31	B5759604	Gasket	Appelez-nous	-
32	A3140801	Clip K	Appelez-nous	-
33	M0233844	Screw, T F	Appelez-nous	-
34	DC61-40081A	Tie, Wire (Replaces: M0585401)			$ 0.94
35	WP12990527	Screw (Replaces: M0219916)		Immediately	$ 7.94
36	C8890208	Back M.c. Comp	Appelez-nous	-
37	M0219704	Screw	Appelez-nous	-
38	C8913701	Support, Mc	Appelez-nous	-
39	M0211530	Screw	Appelez-nous	-
40	D7790501	Support Drain Pan	Appelez-nous	-
41	WP489069	Screw-sd (Replaces: M0233704)		Immediately	$ 7.86
42	D7790601	Drain Pan	Appelez-nous	-
43	M0110508	Clip	Appelez-nous	-
NI	C8916701	Spring K	Appelez-nous	-
