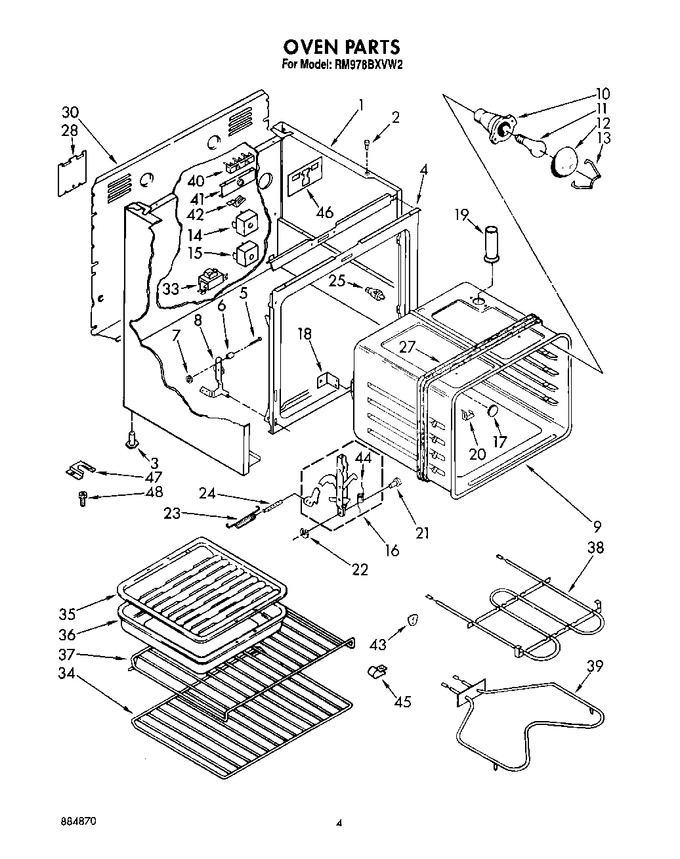

03 - Oven


04 - Oven Door And Drawer


05 - Control Panel


06 - Microwave Door And Shelf, Lit/optional


07 - Magnetron And Air Flow


08 - Stirrer Drive


09 - Microwave Cabinet


10 - Wiring Harness


11 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330090		Main Chassis (almond)		Appelez-nous	-
1	330091		Main Chassis (toast)		Appelez-nous	-
1	330092		Main Chassis (platinum)		Appelez-nous	-
1	WP681414		Main Chassis (screw 10-32 X 1/2 (2))   (Replaces: 690989)			Immediately	$ 8.47
1	WP681414		Main Chassis (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 8.47
1	330086		Main Chassis (white)		Appelez-nous	-
2	238614		Bumper, Cooktop (2)				$ 84.79
3	WPW10058460		Leg, Leveling (4)   (Replaces: 3150150)			Immediately	$ 8.24
4	3172194		Frame, Front		Appelez-nous	-
4	WP681414		Screw, 10-16 X 1/2 (3)   (Replaces: 343641)			Immediately	$ 8.47
5	307985		Pin, Hinge (2)				$ 29.54
6	309111		Snubber, Door (2)		Appelez-nous	-
7	308306		Pushnut (2)		Appelez-nous	-
8	327891		Hinge (l.h.)		Appelez-nous	-
8	327890		Hinge (r.h.)		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
9	311056		Screw (3)		Appelez-nous	-
9	3172456		Oven (30`` Pyro)		Appelez-nous	-
10	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
10	660556		Socket, Lamp		Appelez-nous	-
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
12	308039		Cover, Light		Appelez-nous	-
13	308038		Retainer, Light		Appelez-nous	-
14	314215		Screw, No.6		Appelez-nous	-
14	314209		Switch, Broil		Appelez-nous	-
15	314210		Switch, Bake		Appelez-nous	-
15	314215		Screw, No.6		Appelez-nous	-
16	329710		Channel, Arm (2)		Appelez-nous	-
17	257314		Plug Button		Appelez-nous	-
18	311056		Screw (2)		Appelez-nous	-
18	3150537		Screw		Appelez-nous	-
18	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
18	311220		Bracket, Oven (mounting)		Appelez-nous	-
19	307961		Vent, Oven		Appelez-nous	-
19	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
20	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 87.08
21	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 15.81
22	307594		Ring, Retainer (2)		Appelez-nous	-
23	308127		Spring, Door (2)				$ 11.75
24	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 12.74
25	310345		Switch, Door				$ 94.86
27	3148284		Seal, Door		Appelez-nous	-
28	307972		Cover, Service		Appelez-nous	-
28	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 8.47
30	3147490		Cover, Rear		Appelez-nous	-
30	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 8.47
33	660001		Ballast		Appelez-nous	-
33	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
34	308173		Rack, Oven (straight)		Appelez-nous	-
35	4396923		Grill, Broiler   (Replaces: 3147563)			Immediately	$ 60.71
36	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 60.71
37	308172		Rack, Oven (offset)		Appelez-nous	-
38	WP660579		Element, Broil   (Replaces: 660579)				$ 164.26
38	3150532		Screw (2)		Appelez-nous	-
39	3150532		Screw (2)		Appelez-nous	-
39	WP308180		Element, Bake   (Replaces: 661170)				$ 107.69
40	98884		Screw (2)		Appelez-nous	-
40	WP112432		Nut (2)   (Replaces: 112432)				$ 8.63
40	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 30.13
41	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 8.47
41	3150190		Bracket, Terminal		Appelez-nous	-
42	WP681414		Screw   (Replaces: 690989)			Immediately	$ 8.47
42	308498		Terminal, Ground		Appelez-nous	-
42	313660		Clip		Appelez-nous	-
43	311982		Coverplate (2)		Appelez-nous	-
43	3150532		Screw (4)		Appelez-nous	-
44	308127		Spring, Door (2)				$ 11.75
45	WP488729		Screw   (Replaces: 313638)			Immediately	$ 8.28
45	308609		Strain, Relief		Appelez-nous	-
46	3150189		Barrier, Shield		Appelez-nous	-
47	8273888A		Bracket, Anchor   (Replaces: 3148603)				$ 32.62
48	3148605		Anchor, Plastic		Appelez-nous	-
48	WPW10208653		Insulation, Oven   (Replaces: 3149287)			Immediately	$ 55.47
48	310433		Insulation, Wrap		Appelez-nous	-
