Diagram # Part Number Description Series Availability Ships Price Add to Cart
4 3147557 Wiring Harness (vent Motor) Appelez-nous -
6 3147568 Wiring Harness (rocker Switch) Appelez-nous -
7 3150312 Wire Assembly (ground) Appelez-nous -
9 16515 Harness Clip   (Replaces: 313438) Special Order $ 20.53

10 3147832 Adapter, Terminal Appelez-nous -
11 3147554 Wiring Harness Main (microwave) Appelez-nous -
12 3147560 Wiring Harness (control, Microwave) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

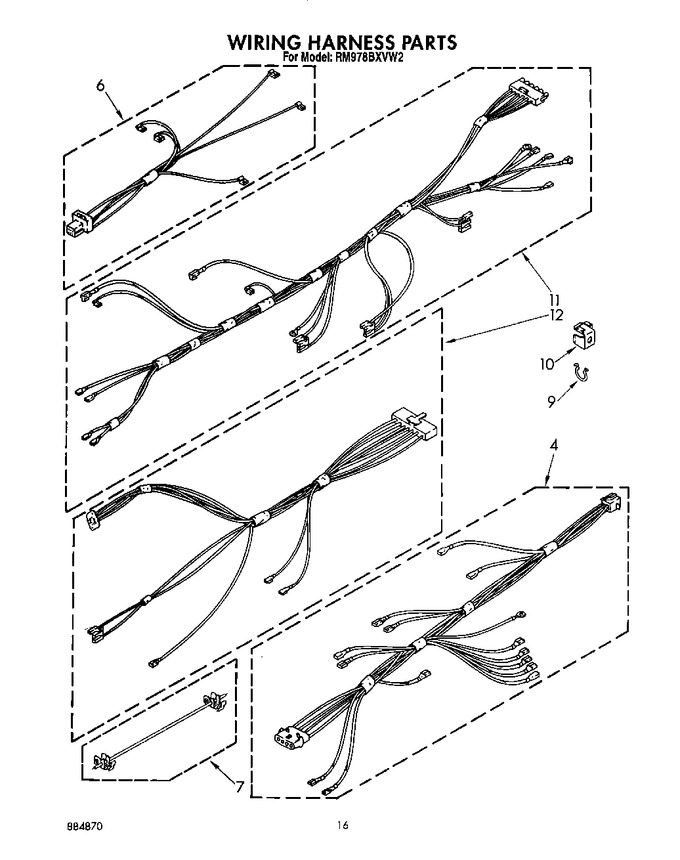

Diagram for RM978BXVM2
