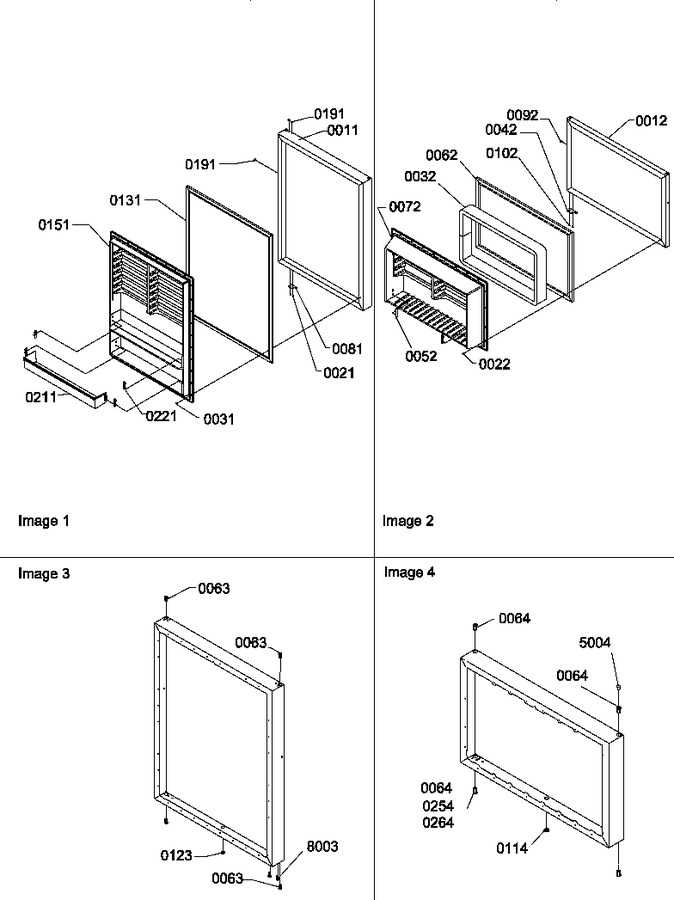

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10928301E		Assy Ref Door Fm		Appelez-nous	-
12	10928403E		Assy, Fz Dr Foam		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
32	B0523593		Insulation, Batt Frz. Dr.		Appelez-nous	-
42	W11708403		Stop, Door (blk)   (Replaces: 10447109)			Immediately	$ 14.75
52	10202001		Clip, Retainer		Appelez-nous	-
62	10456825		Gasket,ref Dr(black)		Appelez-nous	-
63	10961002		Bushing, Door (blk)		Appelez-nous	-
64	10961002		Bushing, Door (blk)		Appelez-nous	-
72	10609201		Liner, Frz Door		Appelez-nous	-
81	W11708403		Stop, Door (blk)   (Replaces: 10447109)			Immediately	$ 14.75
92	WP12246608		Plug, Top Hinge Button (blk)   (Replaces: M0310731)			Immediately	$ 8.15
102	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
114	M0310336		Plug, Button (blk)		Appelez-nous	-
123	M0310336		Plug, Button (blk)		Appelez-nous	-
131	10456824		Gasket,fz Dr(black)		Appelez-nous	-
151	10609701		Liner, Refrig Door		Appelez-nous	-
191	WP12246608		Plug, Top Hinge Button (blk)   (Replaces: M0310731)			Immediately	$ 8.15
211	10609304		Retainer, Ref Door		Appelez-nous	-
221	10202001		Clip, Retainer		Appelez-nous	-
254	12028602		Bushing, Door (blk)		Appelez-nous	-
264	10252903		Filter, Bushing		Appelez-nous	-
5004	10686404		Plug, Button(black)		Appelez-nous	-
8003	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
