Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

14 10433803 Rail, Crisper Back Appelez-nous -
22 10895810 Shelf-glide Appelez-nous -
23 10895810 Shelf-glide Appelez-nous -
24 10467806 Band, Crisper Cont Appelez-nous -
31 10920202 Extrusion-mk Rear Appelez-nous -
32 10875101 Stop, Shelf Appelez-nous -
34 10797501 Slide, Crisper Appelez-nous -
41 10920302 Extrusion-mk Fr Appelez-nous -
43 12016601 Clip-sta Shelf Appelez-nous -
44 10432701 Rail, Side Crisper Appelez-nous -
51 10629301 Sleeve, Mk Appelez-nous -
54 10432702 Rail, Side Crisper Appelez-nous -
64 10432803 Rail, Ctr. Crisper Appelez-nous -
71 10895808 Shelf-glide Appelez-nous -
74 10432804 Rail, Ctr. Crisper Appelez-nous -
81 10445704 Scoop, Air Appelez-nous -
84 10687901 Rail, Crisper Fr (r) Appelez-nous -
91 10920401 Slide, Mk Control Appelez-nous -
94 10687902 Rail, Crisper Fr (l) Appelez-nous -
101 10920102 Band, Mk Control Appelez-nous -
104 10435603 Rail, Crisper Back Appelez-nous -
111 10880201 Glide, Mk R Appelez-nous -
114 10481001 Roller, Pan Special Order $ 10.99

121 10897101 Glide, Mk L Appelez-nous -
131 10629203 Pan, Mk Appelez-nous -
134 Y10370063 Glass, Shelf Appelez-nous -
171 10481001 Roller, Pan Special Order $ 10.99

174 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

184 10688050 Extr-r Crisp Front Appelez-nous -
191 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

194 10688049 Extr-l Crisp Front Appelez-nous -
204 10530203 Seal, Crisper Appelez-nous -
214 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

241 12016601 Clip-sta Shelf Appelez-nous -
261 10992407 Blank-side Rail Appelez-nous -
271 10992408 Blank-side Rail Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

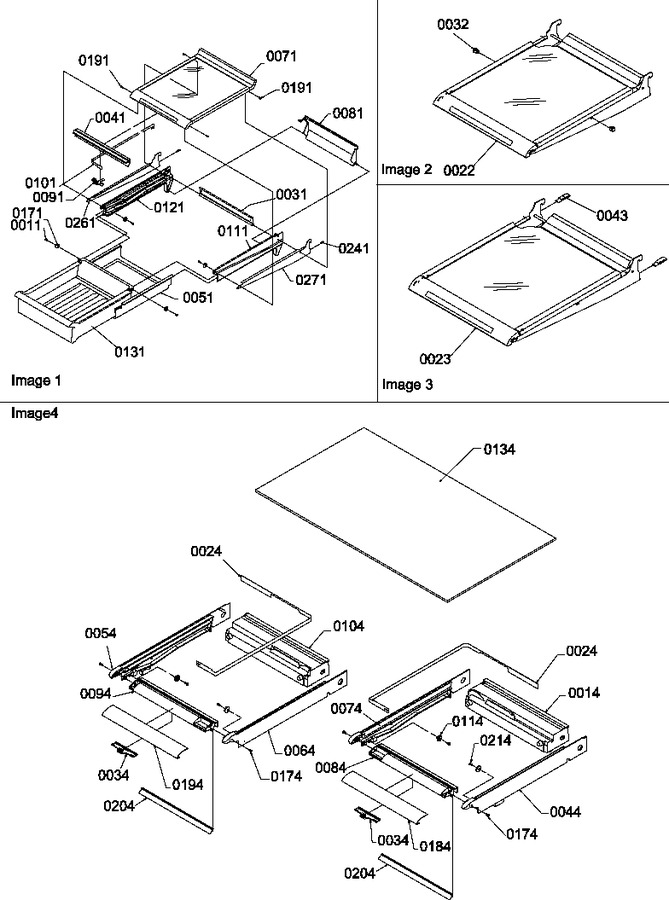

Diagram for TR25VE (BOM: P1196404W E)
