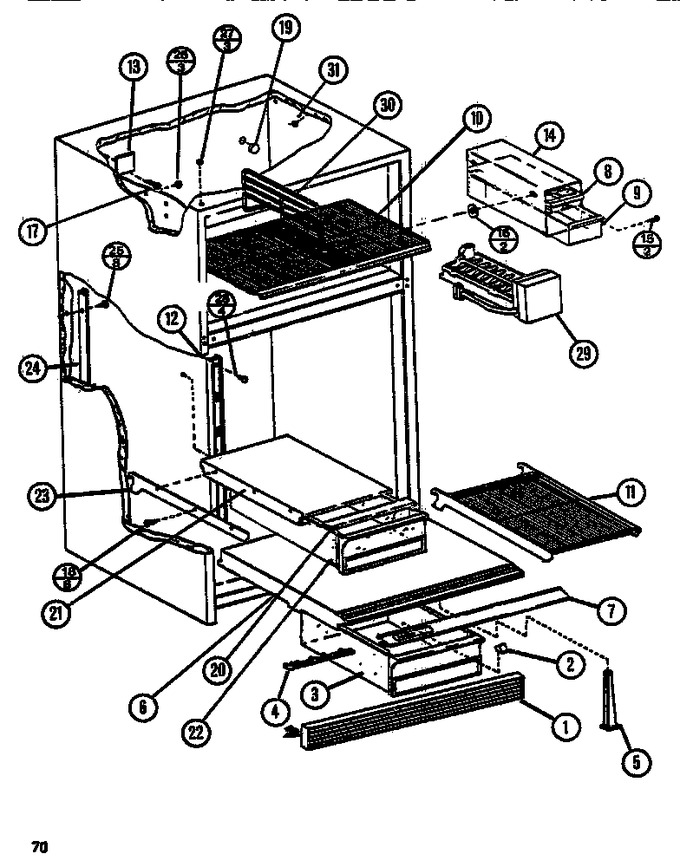

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Compressor Compartment
02 - Functional (ref/frz)
03 - Functional (ref/frz)
04 - Fz Door
05 - Interior Accessories
06 - Rear Components
07 - Ref Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520514 | Grille-toe L |
|
- | |||||
| 1 | D7520510 | Grille-toe-b K |
|
$ 44.22 | |||||
| 1 | D7520512 | Grille-toe K |
|
- | |||||
| 2 | C8908303 | Knob |
|
- | |||||
| 3 | D7581034 | Pan-crisper |
|
- | |||||
| 4 | D7587705 | Slide Humidity |
|
- | |||||
| 5 | D7602202 | Crisper Support Post |
|
- | |||||
| 6 | D7616505 | Top,crisper A-k |
|
- | |||||
| 7 | D7616657 | Trim |
|
- | |||||
| 8 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 9 | D7620025 | Bin-ice |
|
- | |||||
| 10 | D7580706 | Shelf, Frz |
|
- | |||||
| 11 | D7654907 | Shelf, Wire |
|
- | |||||
| 12 | D7599002 | Ladder, Center |
|
- | |||||
| 13 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 14 | D7620110 | Rack, Ice |
|
- | |||||
| 15 | M0219559 | Screw |
|
- | |||||
| 16 | M0270508 | Washer |
|
- | |||||
| 17 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 18 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 19 | M0310305 | Plug, Button (wht) |
|
- | |||||
| 20 | C8913535 | Trim Frz Door |
|
- | |||||
| 21 | D7698204 | Top M.k |
|
- | |||||
| 22 | D7710517 | Drawer-deli |
|
- | |||||
| 23 | D7862966 | Side Rail |
|
- | |||||
| 23 | D7862967 | Side Rail |
|
- | |||||
| 24 | D7599105 | Ladder, Side |
|
- | |||||
| 25 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 26 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 8.21 | ||||
| 27 | M0310720 | Plug |
|
- | |||||
| 27 | M0310716 | Plug |
|
- | |||||
| 27 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 8.21 | ||||
| 28 | M0230923 | Screw |
|
- | |||||
| 29 | Y00000000 | See Note Mdl Ic5-3 Mfg No P7621304w & Ic5-3, P1122201w, Ice Maker -- (availablefrom Sales) |
|
- | |||||
| 30 | D7806002 | Divider, Wire |
|
- | |||||
| 31 | M0311301 | Plug Button |
|
- | |||||
| NI | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| NI | R0179163 | Crisper Top Assy |
|
- |
