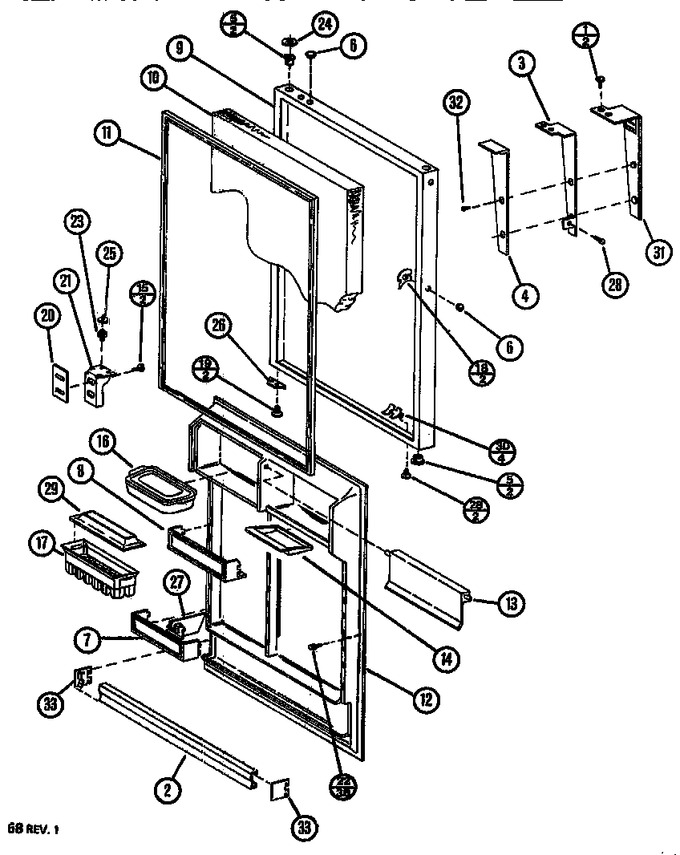

01 - Compressor Compartment


02 - Functional (ref/frz)


03 - Functional (ref/frz)


04 - Fz Door


05 - Interior Accessories


06 - Rear Components


07 - Ref Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: M0222416)			Immediately	$ 8.20
2	C8907228		Retainer Pkg		Appelez-nous	-
3	D7744812		Door Handle		Appelez-nous	-
3	D7744814		Handle Door		Appelez-nous	-
4	D7745012		Handle Pad Inner L		Appelez-nous	-
4	D7745008		Handle Pad Inner		Appelez-nous	-
4	D7745004		Pad Handle		Appelez-nous	-
5	C3652901		Bushing, Hinge Pin		Appelez-nous	-
5	C8852202		Bearing, Hinge		Appelez-nous	-
6	M0311303		Plug Button		Appelez-nous	-
6	M0311302		Plug Button		Appelez-nous	-
6	M0311301		Plug Button		Appelez-nous	-
7	D7574513		Ret Cont. Pkg V		Appelez-nous	-
8	D7565413		Door Shelf V		Appelez-nous	-
9	D7731737		Lower Door Pan, Ref, White		Appelez-nous	-
9	D7731738		Dr Ref G-t-tr518k		Appelez-nous	-
9	D7731739		Dr Ref L-t-tr518k		Appelez-nous	-
10	B5683507		Insulation		Appelez-nous	-
11	D7605107		Gasket		Appelez-nous	-
12	D7805605		Inner Door Liner Ref		Appelez-nous	-
13	D7805711		Door Dairy		Appelez-nous	-
13	D7805709		Door Dairy		Appelez-nous	-
14	D3799802		Butter Tray		Appelez-nous	-
15	M0246258		Screw		Appelez-nous	-
16	D7806403		Container Sec. Ser.		Appelez-nous	-
17	D7695617		Bucket-egg		Appelez-nous	-
18	B8361401		Nut		Appelez-nous	-
19	M0203458		Screw		Appelez-nous	-
20	B5744804		Shim, Bottom Hinge		Appelez-nous	-
20	B5744803		Shim		Appelez-nous	-
20	B5744802		Shim		Appelez-nous	-
20	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
21	C8814803		Bracket Lower Hinge		Appelez-nous	-
22	M0219730		Screw				$ 7.65
23	C8814901		Pin, Hinge K		Appelez-nous	-
24	M0274049		Washer		Appelez-nous	-
25	M0274050		Washer		Appelez-nous	-
26	C8894804		Stop Door		Appelez-nous	-
27	D7806103		Snugger Door		Appelez-nous	-
28	M0203931		Screw, Tf		Appelez-nous	-
29	D7805909		Cover, Egg Bucket		Appelez-nous	-
30	B8363501		Nut		Appelez-nous	-
31	D7744906		Pad-outer Handle		Appelez-nous	-
31	D7744910		Pad W Outer Handle		Appelez-nous	-
31	D7744914		Outer Handle Pad		Appelez-nous	-
32	M0215115		Screw		Appelez-nous	-
33	D7681803		Cap, Pkg Retainer End		Appelez-nous	-
33	D7681804		Cap, Pkg Retainer End		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
