SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Refrigerator Door


05 - Freezer Door


06 - Air Flow


07 - Control


08 - Unit, Lit/optional

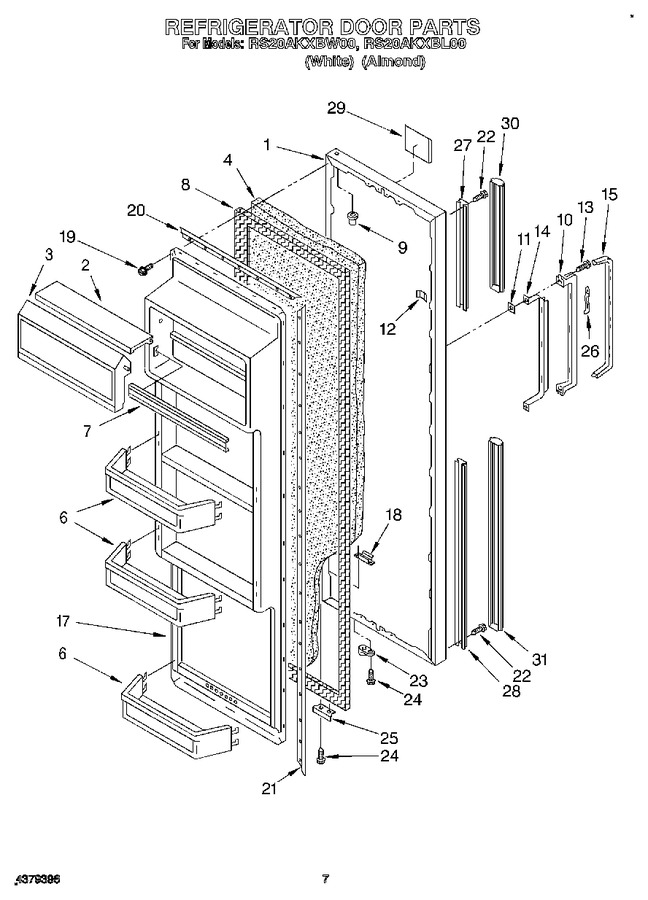

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362029		Refrigerator Door Panel (white)		Appelez-nous	-
1	4362054		Refrigerator Door Panel (almond (also Order Item 4))		Appelez-nous	-
2	1116707		Shelf, Compartment		Appelez-nous	-
3	2173130		Door, Compartment		Appelez-nous	-
4	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
6	2163644		Shelf Bin (3)		Appelez-nous	-
7	WP2201061		Trim   (Replaces: 2173127)				$ 118.40
8	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	2147470		Handle (white)		Appelez-nous	-
10	2170066		Handle (almond)		Appelez-nous	-
11	2147097		Shim, Handle (2)		Appelez-nous	-
12	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.50
13	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
14	1127465		Reinforcement, Handle		Appelez-nous	-
15	2147581		Insert, Handle		Appelez-nous	-
17	2160928		Panel, Interior		Appelez-nous	-
18	2155335		Tap, Plate		Appelez-nous	-
19	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
20	1118301		Retainer, Gasket		Appelez-nous	-
21	1117766		Retainer, Gasket				$ 36.55
22	WP489478		Screw   (Replaces: 489242)				$ 7.75
23	4318165		Cam, Door Closer   (Replaces: 2155313)			Immediately	$ 27.36
24	WP999367		Screw   (Replaces: 489367)				$ 7.86
25	2155332		Bracket, Door Stop		Appelez-nous	-
26	849445		Handle, Reinforcement		Appelez-nous	-
27	2147898		Retainer, Top		Appelez-nous	-
28	2147896		Retainer (bottom)		Appelez-nous	-
29	2163676		Nameplate				$ 36.02
30	2147472		Insert, Top (white)		Appelez-nous	-
30	2170067		Insert, Top (almond)		Appelez-nous	-
31	2170068		Insert, Bottom (almond)		Appelez-nous	-
31	2147471		Insert, Bottom (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
