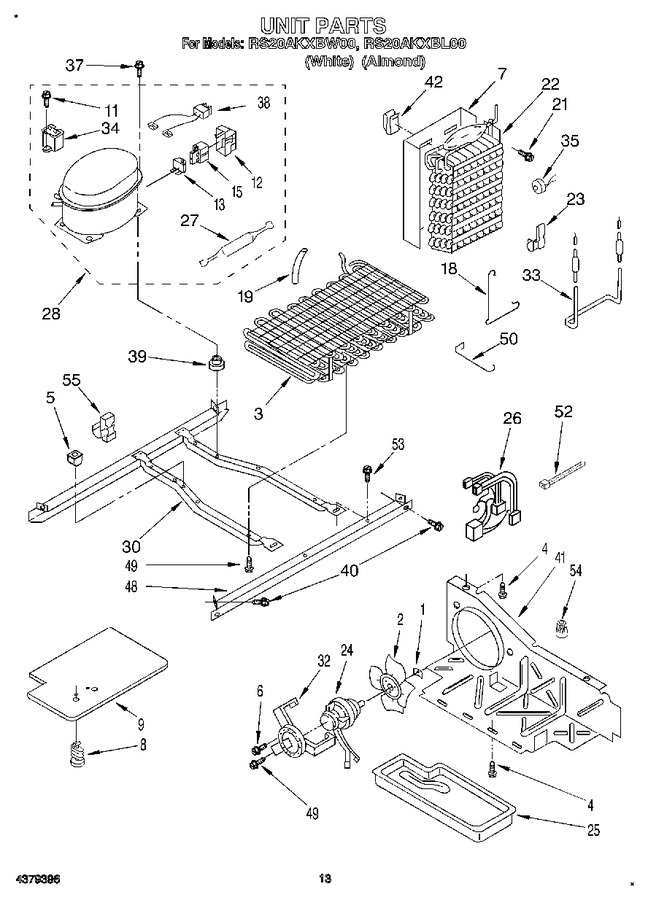

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 7.82 | |||||
| 2 | 1108179 | Fan, Blade |
|
$ 49.54 | |||||
| 3 | 2164513 | Condenser Assembly |
|
- | |||||
| 4 | WP489464 | Screw (Replaces: 489337) |
|
Immediately | $ 7.83 | ||||
| 5 | 509812 | Grommet |
|
- | |||||
| 6 | 681390 | Screw (Replaces: 489019) |
|
$ 13.06 | |||||
| 7 | 2149293 | Heat Shield And Drain Pan |
|
- | |||||
| 8 | 489396 | Clip |
|
$ 10.72 | |||||
| 9 | 2160505 | Cover, Unit Compartment |
|
- | |||||
| 11 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.06 | ||||
| 12 | WP2162358 | Cover (Replaces: 2162358) |
|
$ 90.75 | |||||
| 13 | 4387535 | Overload (includes Relay) (Replaces: 2154760) |
|
$ 181.95 | |||||
| 15 | N/A | Relay (see Overload) |
|
- | |||||
| 18 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 19 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 21 | WP965173 | Screw (Replaces: 487869) |
|
Immediately | $ 10.72 | ||||
| 22 | WP2188822 | Evaporator (Replaces: 2164518) |
|
Immediately | $ 339.85 | ||||
| 23 | 2161330 | Clip, Heater (2) |
|
- | |||||
| 24 | 833697 | Motor, Fan (Replaces: 2162431) |
|
Immediately | $ 88.15 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 26 | 2153994 | Harness, Intermediate |
|
- | |||||
| 27 | W10843121 | Drier (Replaces: 2164409) |
|
Immediately | $ 52.57 | ||||
| 28 | W10309990 | Compressor (includes Items 11, 12, 13, 15, 27, 34 & 38) (Replaces: 2162354) |
|
Immediately | $ 632.81 | ||||
| 30 | 2160498 | Unit Mounting Frame |
|
- | |||||
| 32 | 2162062 | Fan, Motor Bracket |
|
- | |||||
| 33 | 2161322 | Heater, Defrost |
|
$ 82.12 | |||||
| 34 | 2169137 | Capacitor |
|
- | |||||
| 35 | WPW10225581 | Defrost, Bi-metal (Replaces: 2161331) |
|
Immediately | $ 50.77 | ||||
| 37 | 876811 | Screw (Replaces: 489373) |
|
$ 7.42 | |||||
| 38 | WP2172890 | Wire Assembly (Replaces: 1127675) |
|
$ 8.10 | |||||
| 39 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.42 | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | 2155301 | Air Baffle |
|
- | |||||
| 42 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 48 | 2149717 | Unit Mounting Rail |
|
- | |||||
| 49 | 488624 | Screw |
|
- | |||||
| 50 | 1105612 | Guard, Fan |
|
$ 40.58 | |||||
| 52 | WPW10339879 | Strap (Replaces: 2165001) |
|
$ 7.90 | |||||
| 53 | WP489427 | Screw (Replaces: 489339) |
|
$ 7.47 | |||||
| 54 | 850145 | Wire Connector |
|
- | |||||
| 55 | 833938 | Kit, Terminal Connector |
|
$ 8.07 | |||||
| 55 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 51.44 | |||||
| 55 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | |||||
| 55 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | ||||
| 55 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 55 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 55 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 55 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 55 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 55 | 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 | |||||
| 55 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| 55 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 | |||||
| 55 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 55 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 55 | 261891 | Enamel, Golden Wheat (1 Qt. Uncut) |
|
- | |||||
| 55 | W11729596 | Eckmf-94 (Replaces: 2155469) |
|
Immediately | $ 150.98 | ||||
| 55 | 2155658 | Clip, Wire And Water Tube |
|
- | |||||
| 55 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| 55 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 55 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 55 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 55 | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| 55 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| 55 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 89.66 | |||||
| 55 | 350941 | Leveler, Enamel (13 Oz. Spray Can) |
|
- | |||||
| 55 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | |||||
| 55 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 55 | 285365 | Paint, Spray (13 Oz.) (toast) |
|
- | |||||
| 55 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 55 | 261890 | Xenamel, Golden Wheat (13 Oz. Spray Can) |
|
- | |||||
| 55 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 55 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 55 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 55 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 55 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 55 | 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) |
|
$ 231.56 | |||||
| 55 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 55 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | |||||
| 55 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 78.45 | |||||
| 55 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 55 | 1117510 | Torx Key |
|
$ 5.84 | |||||
| 55 | 515393 | Transformer (115-230 Volt) |
|
- | |||||
| 55 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 55 | 285368 | Enamel, Platinum (1 Qt. Uncut) |
|
- | |||||
| 55 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| LIT2173253 | Energy Label |
|
- | ||||||
| LIT2169111 | Service And Wiring Sheet |
|
- | ||||||
| LIT2157984 | Use And Care Guide |
|
- |
