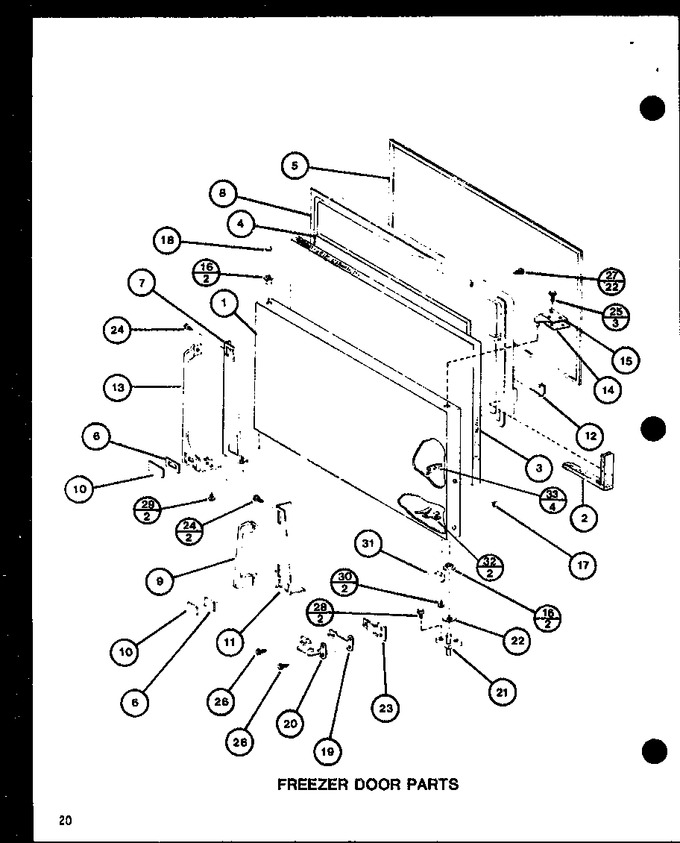

01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7728226		Upper Door Pan, Almond		Appelez-nous	-
1	D7728222		Upper Door Pan, White		Appelez-nous	-
2	B0523563		Insulation Ft. K		Appelez-nous	-
3	B5683513		Insulation		Appelez-nous	-
4	B5683515		Insulation		Appelez-nous	-
5	D7605108		Gasket		Appelez-nous	-
6	C8920501		Pad, Nameplate		Appelez-nous	-
7	D7609807		Pad-handle		Appelez-nous	-
8	D7583910		Inner Dr Panel-frz		Appelez-nous	-
10	C8931704		Nameplate Frz		Appelez-nous	-
12	C8907211		Retainer Package		Appelez-nous	-
13	D7610601		Handle, Door		Appelez-nous	-
14	A3270303		Shim Kit		Appelez-nous	-
14	A3270301		Shim, Top Hinge		Appelez-nous	-
14	A3270302		Shim-top Hinge K		Appelez-nous	-
15	B5744301		Hinge		Appelez-nous	-
16	C3652901		Bushing, Hinge Pin		Appelez-nous	-
17	WP67001130		Plug   (Replaces: M0310705)			Immediately	$ 8.21
18	M0310601		Plug		Appelez-nous	-
18	M0310606		Plug		Appelez-nous	-
19	A3143503		Shim K		Appelez-nous	-
19	A3143501		Shim K		Appelez-nous	-
19	A3143502		Shim K		Appelez-nous	-
20	C8800201		Center Hinge Assy		Appelez-nous	-
21	B5750901		Center Hinge Assy		Appelez-nous	-
22	B5779601		Washer Hinge K		Appelez-nous	-
23	C8925501		Kit, Tap Plate & Screw		Appelez-nous	-
24	M0222418		Screw		Appelez-nous	-
25	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
26	M0226831		Screw		Appelez-nous	-
27	M0219717		Screw		Appelez-nous	-
28	M0205441		Screw K		Appelez-nous	-
29	M0203858		Screw		Appelez-nous	-
30	M0203458		Screw		Appelez-nous	-
31	C8894802		Door Stop		Appelez-nous	-
32	B8363501		Nut		Appelez-nous	-
33	B8361401		Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
