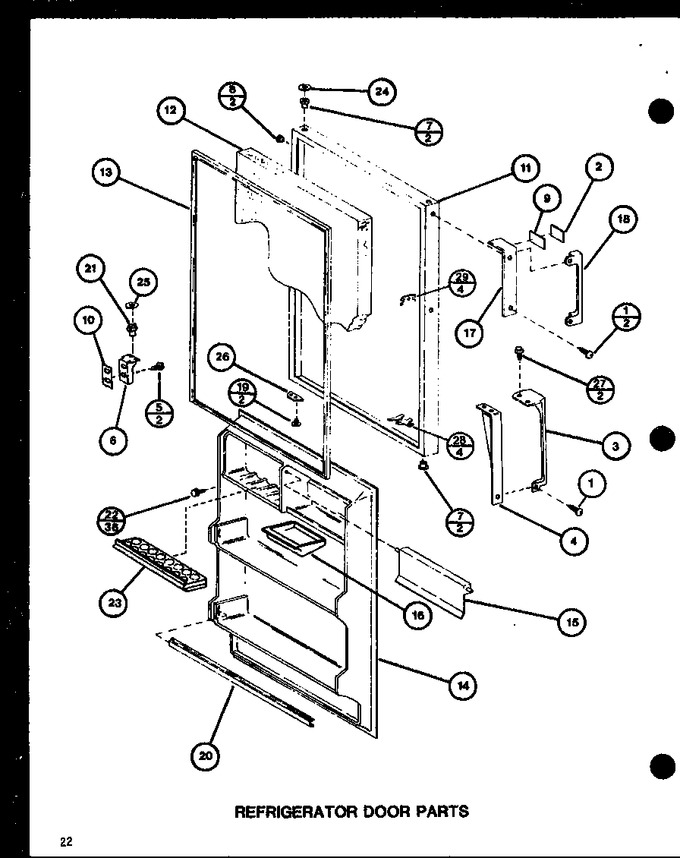

01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0222418		Screw		Appelez-nous	-
2	C8915804		Nameplate, Handle		Appelez-nous	-
3	D7610602		Handle Door		Appelez-nous	-
4	D7609808		Pad, Handle		Appelez-nous	-
5	M0246258		Screw		Appelez-nous	-
6	C8814803		Bracket Lower Hinge		Appelez-nous	-
7	C8852202		Bearing, Hinge		Appelez-nous	-
7	C3652901		Bushing, Hinge Pin		Appelez-nous	-
8	M0310715		Plug		Appelez-nous	-
8	WP67001130		Plug   (Replaces: M0310705)			Immediately	$ 8.21
9	C8920501		Pad, Nameplate		Appelez-nous	-
10	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
10	B5744803		Shim		Appelez-nous	-
10	B5744802		Shim		Appelez-nous	-
11	D7728314		Lower Door Pan, Ref, White		Appelez-nous	-
11	D7728318		Lower Door Pan, Ref, Almond		Appelez-nous	-
12	B5683508		Insulation		Appelez-nous	-
13	D7605109		Gasket				$ 31.30
14	D7652307		Inner Dr Panel-ref		Appelez-nous	-
15	D7604410		Dairy Door		Appelez-nous	-
16	D3799802		Butter Tray		Appelez-nous	-
19	M0203458		Screw		Appelez-nous	-
20	C8907212		Retainer-pkg		Appelez-nous	-
21	C8814901		Pin, Hinge K		Appelez-nous	-
22	M0219717		Screw		Appelez-nous	-
23	D7587808		Egg Tray		Appelez-nous	-
24	M0274049		Washer		Appelez-nous	-
25	M0274050		Washer		Appelez-nous	-
26	C8894802		Door Stop		Appelez-nous	-
27	M0203858		Screw		Appelez-nous	-
28	B8363501		Nut		Appelez-nous	-
29	B8361401		Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
