01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Refrigerator Door


05 - Freezer Door


06 - Air Flow


07 - Control


08 - Unit, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

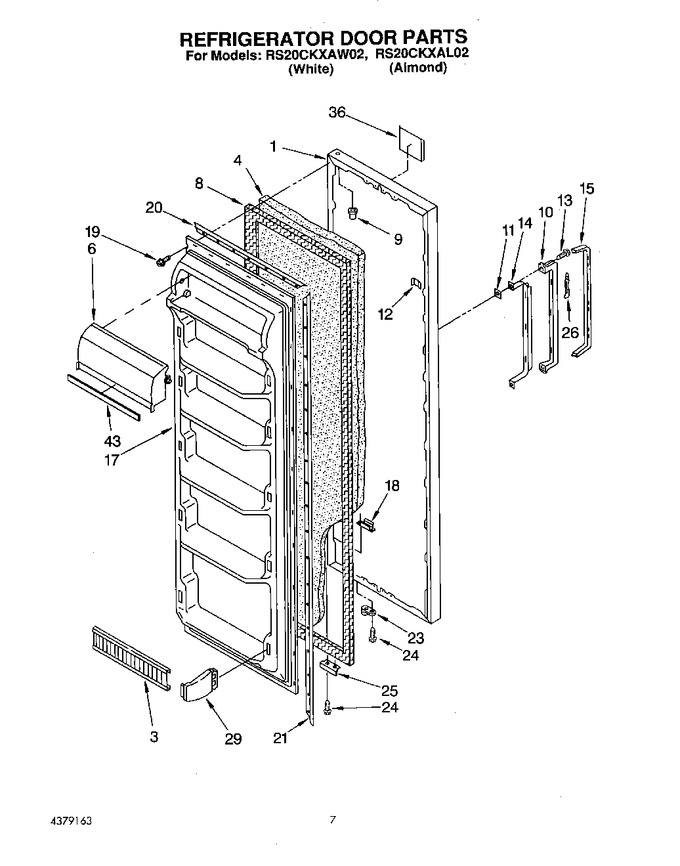

1	4362027		Refrigerator Door Panel (white)		Appelez-nous	-
1	4362028		Refrigerator Door Panel (almond (also Order Item 4))		Appelez-nous	-
3	1120852		Trim, Shelf (5)		Appelez-nous	-
4	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
6	2148289		Door, Compartment		Appelez-nous	-
8	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	2147526		Handle		Appelez-nous	-
11	2147097		Shim, Handle (2)		Appelez-nous	-
12	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
13	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
14	1127465		Reinforcement, Handle		Appelez-nous	-
15	2147581		Insert, Handle		Appelez-nous	-
17	1129249		Panel, Interior Door		Appelez-nous	-
18	2155335		Tap, Plate		Appelez-nous	-
19	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
20	1118301		Retainer, Gasket		Appelez-nous	-
21	1117766		Retainer, Gasket				$ 36.55
23	4318165		Cam, Door Closer   (Replaces: 2155312)			Immediately	$ 29.74
24	WP999367		Screw   (Replaces: 489367)				$ 8.56
25	2155334		Bracket, Door Stop		Appelez-nous	-
26	849445		Handle, Reinforcement		Appelez-nous	-
29	1110713		Trim, End Cap				$ 5.84
36	2160005		Nameplate		Appelez-nous	-
43	1124432		Trim, Compartment Door		Appelez-nous	-
