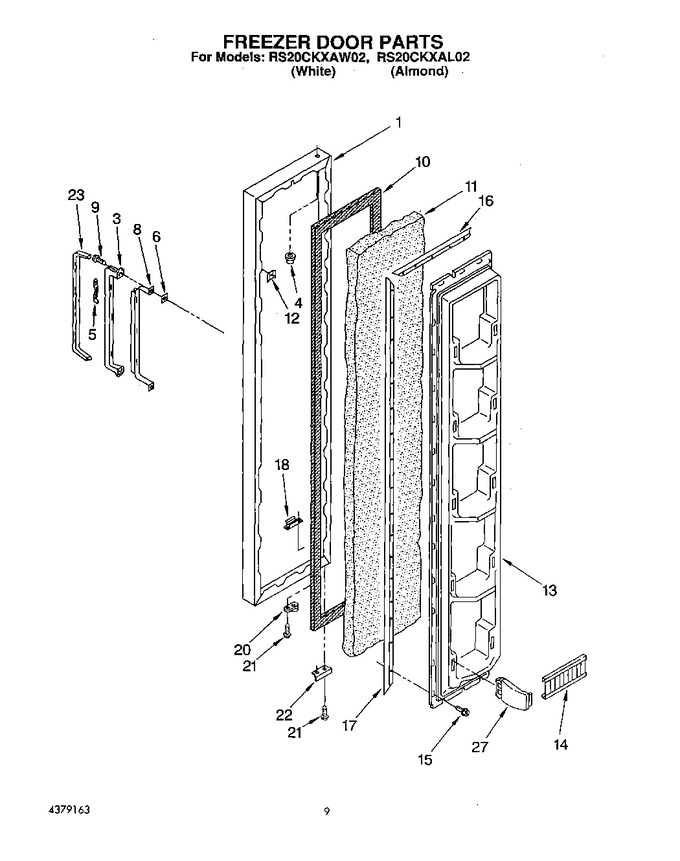

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362035		Freezer, Door Panel (almond (also Order Item 11))		Appelez-nous	-
1	4362034		Freezer, Door Panel (white)		Appelez-nous	-
3	2147526		Handle		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
5	849445		Handle, Reinforcement		Appelez-nous	-
6	2147097		Shim, Handle (2)		Appelez-nous	-
8	1127465		Reinforcement, Handle		Appelez-nous	-
9	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
10	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
13	1129241		Panel, Interior Door		Appelez-nous	-
14	1120856		Trim, Door Shelf		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
16	1117767		Retainer, Gasket		Appelez-nous	-
17	1117766		Retainer, Gasket				$ 36.55
18	2155335		Tap, Plate		Appelez-nous	-
20	4318165		Cam, Door Closer   (Replaces: 2155312)			Immediately	$ 29.74
21	WP999367		Screw   (Replaces: 489367)				$ 8.56
22	2155334		Bracket, Door Stop		Appelez-nous	-
23	2147581		Insert, Handle		Appelez-nous	-
27	WP2196100		End Cap, Trim   (Replaces: 1110719)			Immediately	$ 9.09
