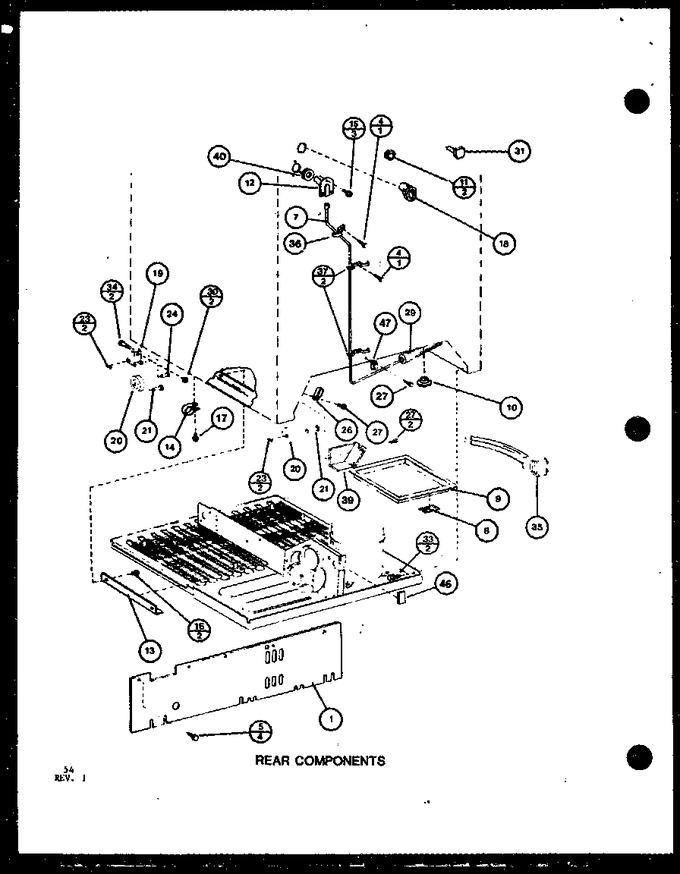

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8890206 | Mc Back Assy |
|
- | |||||
| 4 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 5 | M0241118 | Screw-sm |
|
- | |||||
| 7 | D7653904 | Drain Tube |
|
- | |||||
| 8 | B5691701 | Pad A |
|
- | |||||
| 9 | D7497301 | Net-pan,drain |
|
- | |||||
| 10 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 11 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 12 | C3630904 | Elbow, Drain Hose |
|
- | |||||
| 13 | C8913701 | Support, Mc |
|
- | |||||
| 14 | M0102305 | Clamp, Tube |
|
- | |||||
| 15 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 16 | M0211530 | Screw |
|
- | |||||
| 17 | M0233716 | Screw |
|
- | |||||
| 18 | B5749501 | Tunnel-heat Ex |
|
- | |||||
| 19 | C8742401 | Assy, Roller Bracket |
|
- | |||||
| 20 | M0520102 | Roller |
|
- | |||||
| 21 | M1200201 | Pin K |
|
- | |||||
| 23 | M1200004 | Cotter Pin K |
|
- | |||||
| 24 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 26 | M0103901 | Clamp |
|
- | |||||
| 27 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 29 | A0329806 | Insul Tubing 1=12`` |
|
- | |||||
| 30 | M0286708 | Nut, Speed |
|
$ 47.85 | |||||
| 31 | B8318808 | Fill Tube Assy |
|
- | |||||
| 33 | M0233844 | Screw, T F |
|
- | |||||
| 34 | M0204339 | Screw Bolt K |
|
- | |||||
| 35 | R0157154 | Power Cord |
|
- | |||||
| 36 | B5794201 | Clamp |
|
- | |||||
| 37 | B8372901 | Clamp |
|
- | |||||
| 39 | D7663301 | Cover, Wiring |
|
- | |||||
| 40 | A3132301 | Gasket |
|
- | |||||
| 46 | B5759604 | Gasket |
|
- | |||||
| 47 | M0102325 | Clamp |
|
- | |||||
| NI | M0275571 | Sealer Ea |
|
- |
