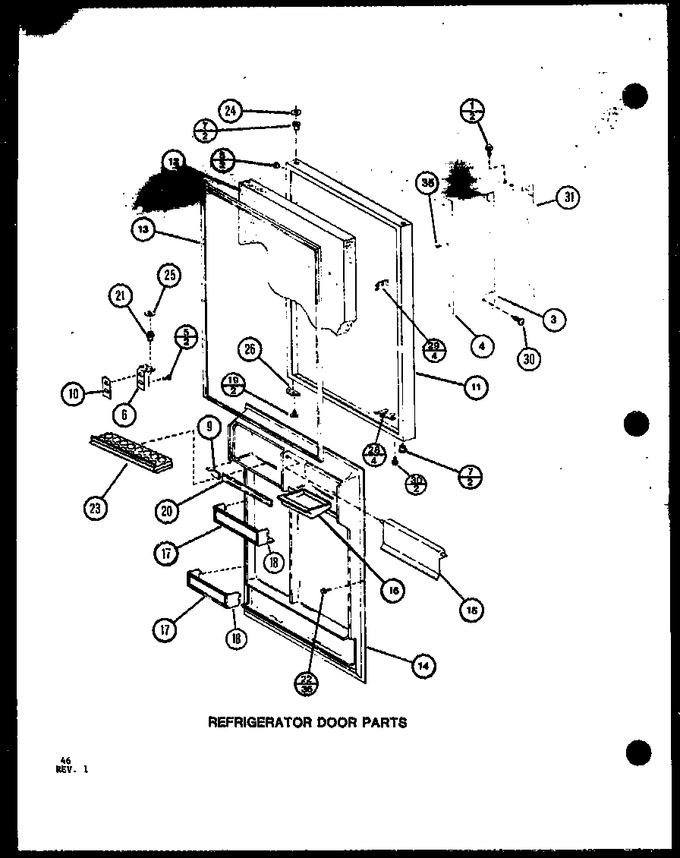

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: M0222416)			Immediately	$ 8.20
3	D7744802		Door Handle		Appelez-nous	-
4	D7745002		Pad, Handle Ref		Appelez-nous	-
5	M0246258		Screw		Appelez-nous	-
6	C8814803		Bracket Lower Hinge		Appelez-nous	-
7	C8852202		Bearing, Hinge		Appelez-nous	-
7	C3652901		Bushing, Hinge Pin		Appelez-nous	-
8	M0311303		Plug Button		Appelez-nous	-
8	M0311301		Plug Button		Appelez-nous	-
9	B0530004		Support K		Appelez-nous	-
10	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
10	B5744803		Shim		Appelez-nous	-
10	B5744802		Shim		Appelez-nous	-
11	D7745304		Dr Ref W Tr20		Appelez-nous	-
11	D7745306		Door Ref L Tr20		Appelez-nous	-
11	D7745305		Lower Door Pan, Ref, Gold		Appelez-nous	-
12	B5683508		Insulation		Appelez-nous	-
13	D7605109		Gasket				$ 31.30
14	D7635003		Inner Dr Panel Ref		Appelez-nous	-
15	D7604410		Dairy Door		Appelez-nous	-
16	D3799802		Butter Tray		Appelez-nous	-
17	D7565404		Shelf-door V		Appelez-nous	-
18	D7574504		Retainer Cant Door V		Appelez-nous	-
19	M0203458		Screw		Appelez-nous	-
20	C8907212		Retainer-pkg		Appelez-nous	-
21	C8814901		Pin, Hinge K		Appelez-nous	-
22	M0219717		Screw		Appelez-nous	-
23	D7587808		Egg Tray		Appelez-nous	-
24	M0274049		Washer		Appelez-nous	-
25	M0274050		Washer		Appelez-nous	-
26	C8894802		Door Stop		Appelez-nous	-
28	B8363501		Nut		Appelez-nous	-
29	B8361401		Nut		Appelez-nous	-
30	M0203931		Screw, Tf		Appelez-nous	-
31	D7744902		Pad Outer Handle		Appelez-nous	-
32	M0215115		Screw		Appelez-nous	-
