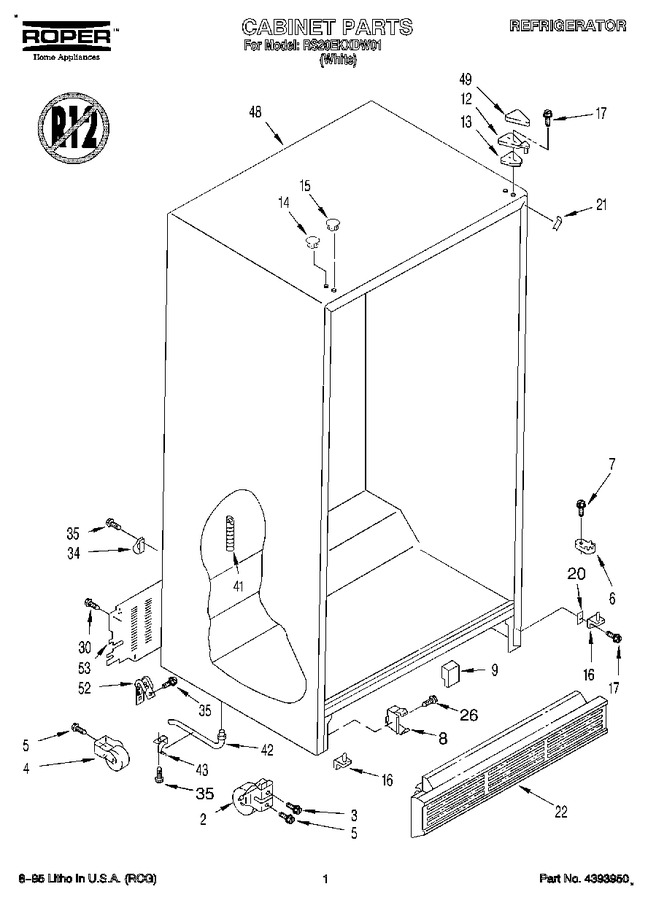

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 14.42
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
5	WP489427		Screw   (Replaces: 489427)				$ 7.84
6	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.90
7	WP489483		Screw   (Replaces: 489420)				$ 11.41
8	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 8.11
9	2176796		Insert, Air Baffle		Appelez-nous	-
12	2171865		Hinge Top (2)		Appelez-nous	-
13	2171868		Shim, Hinge (2)		Appelez-nous	-
14	849391		Hole Plug		Appelez-nous	-
15	1115352		Hole Plug		Appelez-nous	-
16	8201707		Hinge Bottom (2)   (Replaces: 2171851)				$ 97.45
17	WP999367		Screw   (Replaces: 489367)				$ 8.56
20	2171882		Spacer, Hinge		Appelez-nous	-
21	1110708		Filler, Wrapper		Appelez-nous	-
22	2155476		Grille				$ 62.20
26	WP489478		Screw   (Replaces: 489242)				$ 8.18
30	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
34	WP488366		Clamp   (Replaces: 489385)				$ 11.92
35	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
41	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 53.45
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 32.90
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 11.28
48	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
49	842010		Hinge Cover (2)		Appelez-nous	-
52	549193		Clamp-service Cord				$ 14.06
53	WP2188756		Cover, Unit   (Replaces: 2171936)				$ 148.75
