01 - Cabinet

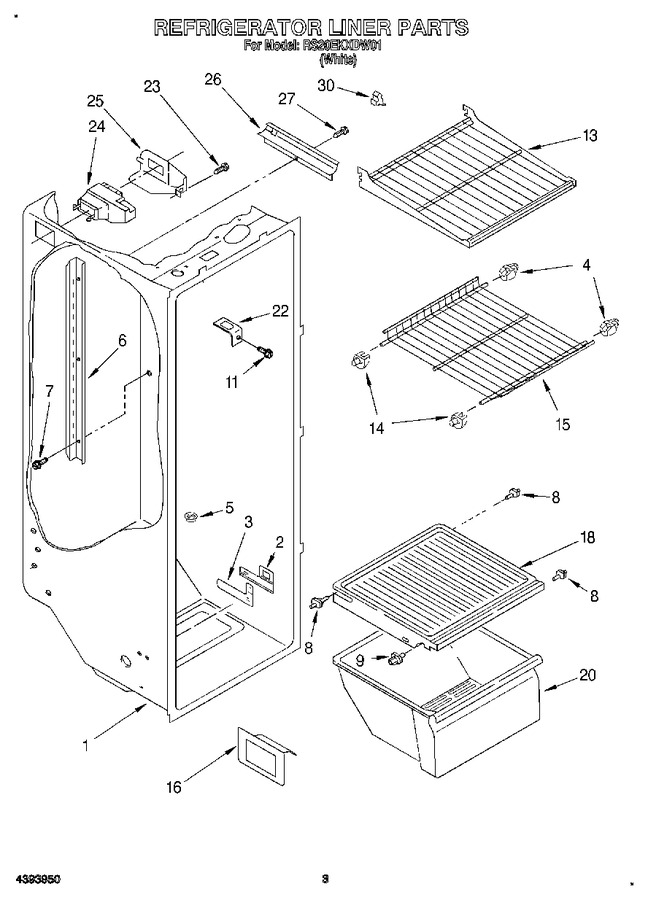

02 - Refrigerator Liner
03 - Freezer Liner
04 - Air Flow
05 - Refrigerator Door
06 - Freezer Door
07 - Unit
08 - Control, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 2194744 | Escutcheon, Meat Pan Control (Replaces: 2182762) |
|
$ 95.84 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | 1118133 | Saddle Stud (right Side) |
|
- | |||||
| 5 | 2171846 | Release Valve |
|
$ 18.99 | |||||
| 6 | 2181796 | Shelf Ladder (2) |
|
- | |||||
| 7 | WP488729 | Screw (6) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 8 | 4388538 | Stud (3) (Replaces: 1110718) |
|
Immediately | $ 32.85 | ||||
| 9 | 4388539 | Stud, Left Front (Replaces: 2172943) |
|
$ 22.28 | |||||
| 11 | WP488488 | Screw (2) (Replaces: 489290) |
|
$ 8.52 | |||||
| 13 | 2163617 | Shelf, Wire (2) |
|
- | |||||
| 14 | 1118134 | Saddle Stud (left Side) |
|
- | |||||
| 15 | 2173378 | Shelf, Wire |
|
- | |||||
| 16 | 2179350 | Deflector |
|
$ 85.89 | |||||
| 18 | W10508993 | Cover, Meat Pan (Replaces: 2173398) |
|
$ 305.85 | |||||
| 20 | 2174418 | Meat Pan |
|
$ 167.10 | |||||
| 22 | WP2256085 | Bracket, Retainer (Replaces: 1123919) |
|
$ 36.10 | |||||
| 23 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 24 | WPW10151374 | Air Diffuser Assembly (Replaces: 2176173) |
|
Immediately | $ 104.77 | ||||
| 25 | 2152019 | Cover, Air Diffuser |
|
$ 90.33 | |||||
| 26 | 2150330 | Cover, Conduit |
|
- | |||||
| 27 | W10759522 | Screw (Replaces: 486298) |
|
$ 8.24 | |||||
| 30 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 10.94 |
