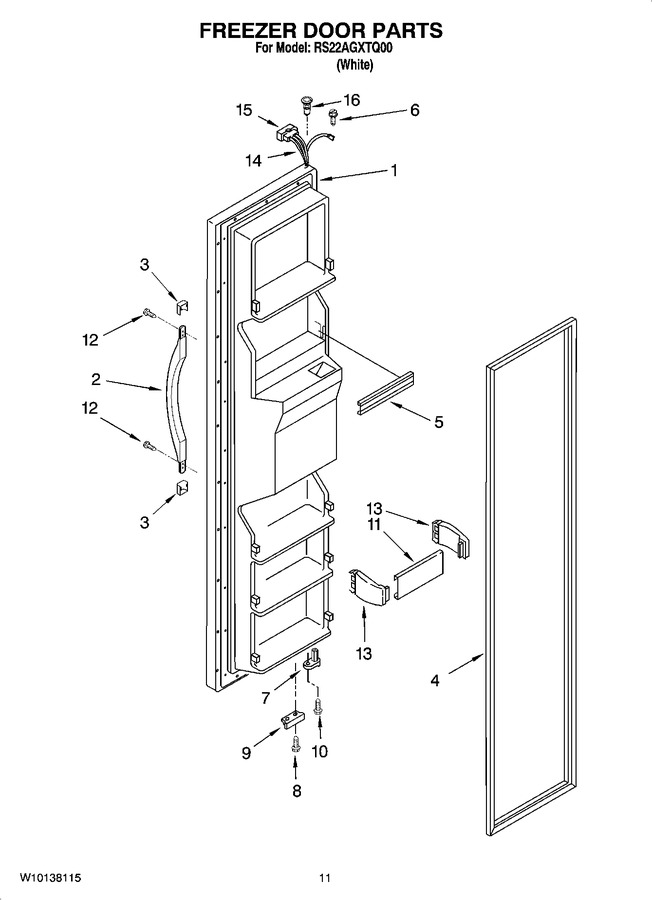

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2216818W | Freezer Door (white (includes Item 6 And Dispenser Front Parts)) |
|
- | |||||
| 2 | 2186649W | Handle, Center (white) |
|
$ 70.49 | |||||
| 3 | WP2193353W | Handle, Trim (white) (Replaces: 2193353W) |
|
$ 8.52 | |||||
| 4 | 2159072 | Door, Gasket Magnetic (Replaces: 2221301) |
|
$ 323.60 | |||||
| 5 | WPW10307490 | Trim, Door Shelf (Replaces: 2209680) |
|
Immediately | $ 24.27 | ||||
| 6 | WP489128 | Screw (Replaces: 8281149) |
|
$ 11.40 | |||||
| 7 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 7.20 | ||||
| 8 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 9 | WP2206629B | Bracket, Door Stop (Replaces: 2206629) |
|
$ 42.79 | |||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 11 | 2313198K | Trim, Door (4) |
|
- | |||||
| 12 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 13 | 2195917 | End Cap (8) |
|
- | |||||
| 14 | 2311642 | Wire Assembly (Replaces: 2206602) |
|
$ 228.82 | |||||
| 15 | 1128252 | Connector |
|
- | |||||
| 16 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 8.15 |
