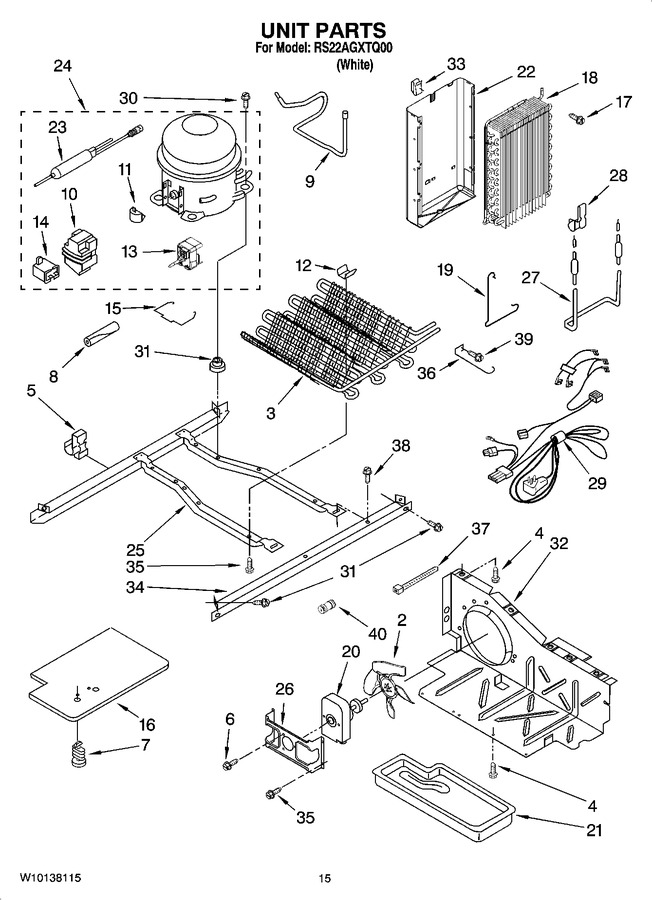

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10121487) |
|
$ 323.45 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 5 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 6 | 681390 | Screw (Replaces: 489099) |
|
$ 13.71 | |||||
| 7 | 489396 | Clip |
|
$ 11.26 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | 2220642 | Tube Suction |
|
$ 232.67 | |||||
| 10 | WP61002138 | Cover (service Compressor Only) (Replaces: 4387959) |
|
$ 9.21 | |||||
| 11 | 2169410 | Overload (service, Includes Relay) (Replaces: 4387962) |
|
$ 105.29 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 19.38 | |||||
| 13 | WP2188831 | Start-device, Combination (start Relay And Overload) For Production Compressor Only (Replaces: 2188831) |
|
$ 186.35 | |||||
| 14 | WP65889-4 | Capacitor (production) (Replaces: 2252799) |
|
Immediately | $ 69.00 | ||||
| 14 | WP2201147 | Capacitor (service) (Replaces: 4387874) |
|
$ 135.42 | |||||
| 15 | 2212996 | Strap, Bale (Replaces: 2255113) |
|
$ 12.72 | |||||
| 16 | W11115203 | Unit Cover, Bottom (Replaces: 2304898) |
|
$ 543.81 | |||||
| 17 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 18 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 356.84 | ||||
| 19 | 2161324 | Clamp |
|
- | |||||
| 20 | W10124096 | Fan, Motor (Replaces: 2188728) |
|
Immediately | $ 163.14 | ||||
| 21 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 158.16 | ||||
| 22 | 2304288 | Heat Shield |
|
- | |||||
| 23 | W10843121 | Drier (production) (Replaces: 2319825) |
|
Immediately | $ 57.13 | ||||
| 23 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 30.78 | ||||
| 24 | W10355489 | Compressor (includes Items 10,11,14 & 23) (also Order 876765 Tube Kit) (Replaces: W10120462) |
|
$ 678.50 | |||||
| 25 | 2304903 | Unit Mounting Frame |
|
$ 244.68 | |||||
| 26 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 12.93 | |||||
| 27 | WP2323197 | Heater, Defrost (Replaces: 2188174) |
|
Immediately | $ 123.25 | ||||
| 28 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 29 | 2187510 | Unit, Harness |
|
- | |||||
| 30 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 31 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 31 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 31 | 489340 | Screw |
|
- | |||||
| 32 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 101.20 | |||||
| 33 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 34 | 2149718 | Unit Mounting Rail |
|
- | |||||
| 35 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 36 | 2186496 | Guard, Fan |
|
- | |||||
| 37 | WPW10339879 | Strap (Replaces: 2172840) |
|
$ 8.30 | |||||
| 38 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 39 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 40 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 40 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 40 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 40 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 40 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 40 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 40 | WP4373559 | Union (Replaces: 2209709) |
|
$ 81.22 | |||||
| 40 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 |
