SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Ice Maker, Optional

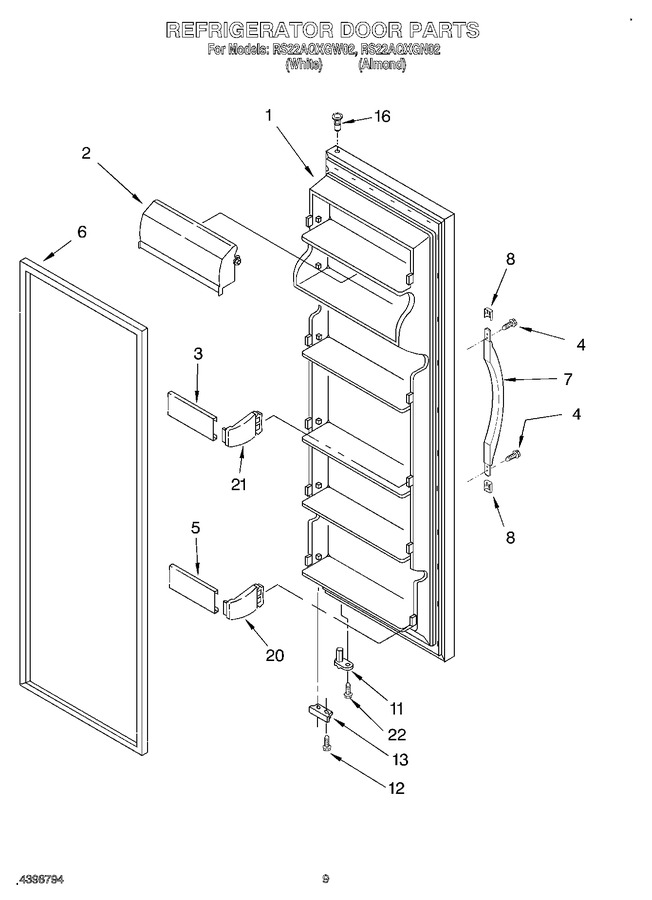

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2198498W		Refrigerator Door (white)		Appelez-nous	-
1	2198498N		Refrigerator Door (almond (includes Item No.6))		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
3	2195934		Trim, Shelf				$ 46.59
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	2182190		Trim, Shelf (4)		Appelez-nous	-
6	2159073		Door Gasket, Magnetic (service)				$ 333.19
7	2186649W		Handle, Center (white)				$ 70.49
7	2186649N		Handle, Center (almond)		Appelez-nous	-
8	2193353N		Handle, Trim (almond)		Appelez-nous	-
8	WP2193353W		Handle, Trim (white)   (Replaces: 2193353W)				$ 8.52
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	2195950		Bracket, Door Stop				$ 5.84
16	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
20	WP2195916K		Endcap (8)   (Replaces: 2195916)			Immediately	$ 13.18
21	WP2195915		Endcap (2)   (Replaces: 2195915)				$ 13.72
22	WP3400012		Screw   (Replaces: 3400012)				$ 8.26

    View Diagram in Separate Window       Print Part List
