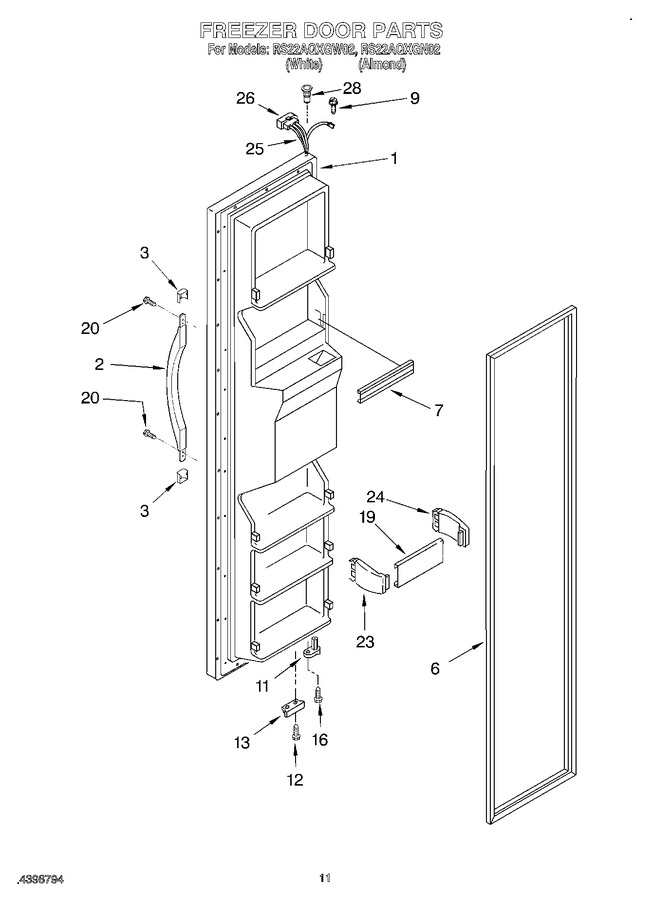

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200409N		Freezer Door (almond (includes Item No.6 And Dispenser Front Parts))		Appelez-nous	-
1	2200409W		Freezer Door (white)		Appelez-nous	-
2	2186649N		Handle, Center (almond)		Appelez-nous	-
2	2186649W		Handle, Center (white)				$ 70.49
3	2193353N		Handle, Trim (almond)		Appelez-nous	-
3	WP2193353W		Handle, Trim (white)   (Replaces: 2193353W)				$ 8.52
6	2159072		Door Gasket, Magnetic (service)				$ 323.60
7	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
9	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	2195950		Bracket, Door Stop				$ 5.84
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
19	2195919		Door, Shelf (4)		Appelez-nous	-
20	WP489491		Screw   (Replaces: 489491)				$ 7.30
23	2195917		Endcap (left)		Appelez-nous	-
24	WP2195916K		End Cap (right)   (Replaces: 2195916)			Immediately	$ 13.18
25	2198271		Wire Assembly		Appelez-nous	-
26	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
28	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
