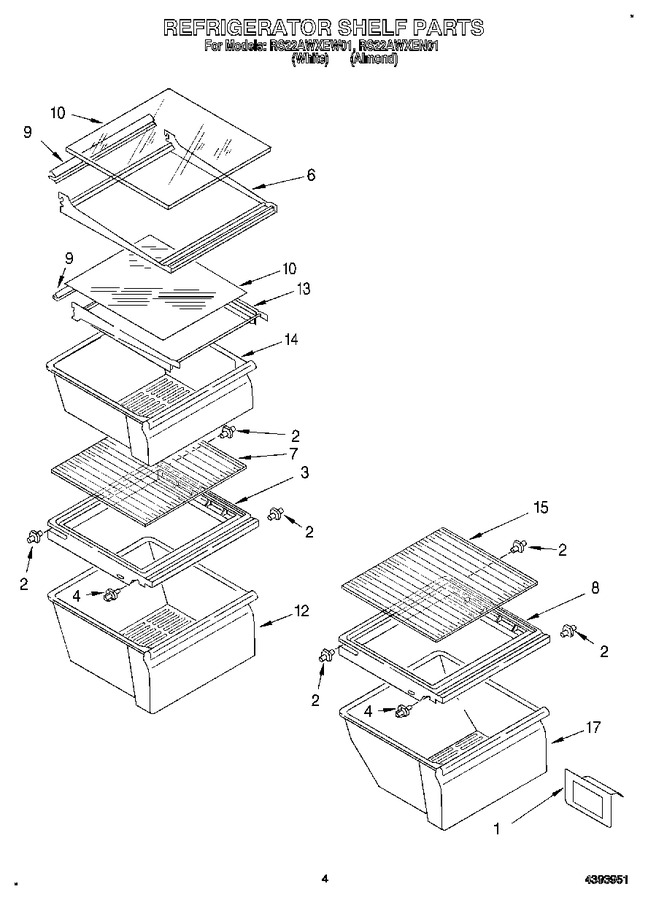

03 - Refrigerator Shelf


04 - Freezer Liner


05 - Freezer Interior


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2179350		Deflector				$ 81.80
2	4388538		Shelf Stud (10)   (Replaces: 1110718)			Immediately	$ 31.34
3	W10508993		Cover, Crisper   (Replaces: 2173394)				$ 291.29
4	4388539		Shelf Stud   (Replaces: 2172943)				$ 17.54
6	2163572		Shelf Assembly, Cantilever (2)		Appelez-nous	-
7	W10864399		Glass, Crisper Cover   (Replaces: 2173405)				$ 220.98
8	W10508993		Cover, Meat Pan   (Replaces: 2182710)				$ 291.29
9	1125594		Retainer, Glass		Appelez-nous	-
10	2163573		Glass (3)		Appelez-nous	-
12	WP2188656		Pan, Crisper   (Replaces: 2173386)				$ 136.40
13	2179443		Shelf, Cantilever (snack Bin)				$ 116.68
14	W11497323		Snack Bin   (Replaces: 2174421)				$ 223.66
15	W10864399		Glass, Meat Cover   (Replaces: 2179259)				$ 220.98
17	WP2188664		Pan, Meat   (Replaces: 2173387)			Immediately	$ 85.30
