SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Freezer Interior


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional

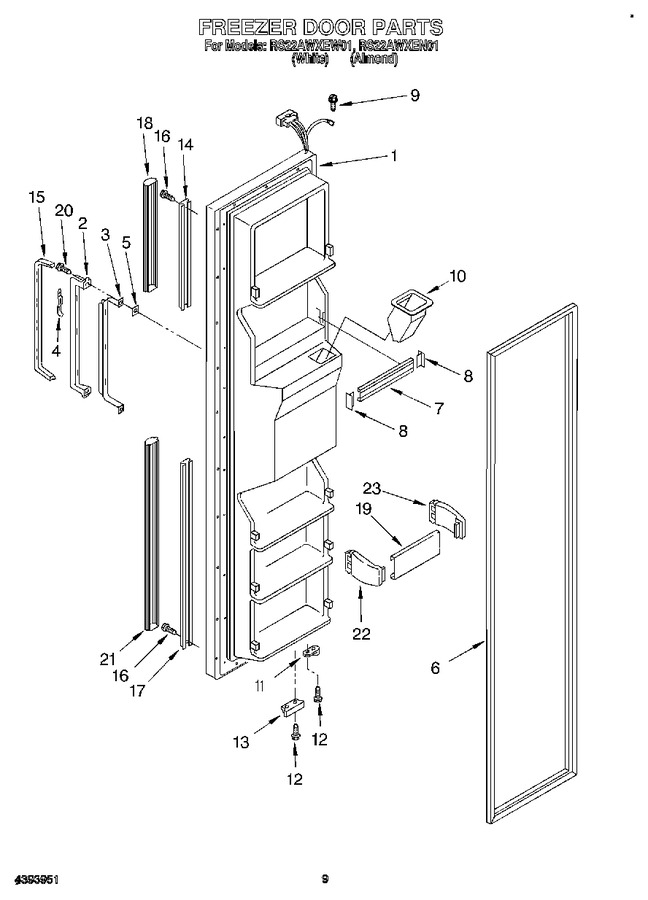

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2173424		Freezer Door (white)		Appelez-nous	-
1	2173425		Freezer Door (almond (includes Item No.6 And Dispenser Front Parts))		Appelez-nous	-
2	2170066		Handle, Center (almond)		Appelez-nous	-
2	2147470		Handle, Center (white)		Appelez-nous	-
3	1127465		Reinforcement, Handle		Appelez-nous	-
4	849445		Clip, Handle		Appelez-nous	-
5	2147097		Shim		Appelez-nous	-
6	2159072		Door Gasket, Magnetic (service)				$ 308.19
7	WPW10307490		Trim, Door Shelf   (Replaces: 2182785)			Immediately	$ 23.11
8	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
9	WP488234		Screw   (Replaces: 489422)				$ 6.74
10	2156146		Chute, Ice		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 27.36
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	2155332		Bracket, Door Stop		Appelez-nous	-
14	2147898		Retainer, Top		Appelez-nous	-
15	2147581		Insert, Handle		Appelez-nous	-
16	WP489478		Screw   (Replaces: 489242)				$ 7.75
17	2147896		Retainer (bottom)		Appelez-nous	-
18	2170067		Extension, Top (almond)		Appelez-nous	-
18	2147472		Extension, Top (white)		Appelez-nous	-
19	2182786		Trim, Shelf (4)		Appelez-nous	-
20	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
21	2147471		Extension, Bottom (white)		Appelez-nous	-
21	2170068		Extension, Bottom (almond)		Appelez-nous	-
22	2156005		End Cap (4)		Appelez-nous	-
23	WP2195916K		Endcap (4)   (Replaces: 2156002)			Immediately	$ 12.55

    View Diagram in Separate Window       Print Part List
