Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10474903 Grille, Toe (gold) Appelez-nous -
1 10474902 Grille, Toe (white) (19) Appelez-nous -
1 10474904 Grille, L Toe Appelez-nous -
2 10551501 Clip-toe Grille Appelez-nous -
3 10430213 Pan, Crisper Appelez-nous -
4 10797501 Slide, Crisper Appelez-nous -
5 10461901 Post, Crisper Support In-Stock Immediately $ 25.85

6 WP841180A Tray, Ice   (Replaces: D7725401) In-Stock Immediately $ 47.84

8 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

9 D7599002 Ladder, Center Appelez-nous -
10 D7874402 Cover-fl Tb/plug Appelez-nous -
11 10423119 Bin, Egg Appelez-nous -
13 10530202 Seal, Crisper Appelez-nous -
15 Y10440001 Shelf, Wire Frz. (18) Appelez-nous -
17 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 5.98

17 M0310724 Plug Appelez-nous -
17 M0310730 Plug Button (almond) Appelez-nous -
18 M0310720 Plug Appelez-nous -
18 M0310716 Plug Appelez-nous -
18 WP67001130 Plug   (Replaces: M0310709) In-Stock Immediately $ 5.98

19 M0230923 Screw Appelez-nous -
21 10370016 Glass, Shelf (18) Appelez-nous -
22 D7599105 Ladder, Side Appelez-nous -
25 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

27 10432701 Rail, Side Crisper Appelez-nous -
28 10432702 Rail, Side Crisper Appelez-nous -
29 10432803 Rail, Ctr. Crisper Appelez-nous -
30 10432804 Rail, Ctr. Crisper Appelez-nous -
31 10688007 Extr. R-crisper Frt Appelez-nous -
32 10688010 Extr. L-crisper Frt Appelez-nous -
33 10433805 Rail, Crisper Back Appelez-nous -
34 10467802 Band, Crisper Control (18-19) Appelez-nous -
35 10435605 Rail, Crisper Back Appelez-nous -
36 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

37 10687701 Rail, Crisper Fr0nt(r) Appelez-nous -
38 10687702 Rail, Crisper Front(l) Appelez-nous -
39 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

NI 10698505 Assy, Crisper Frame Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

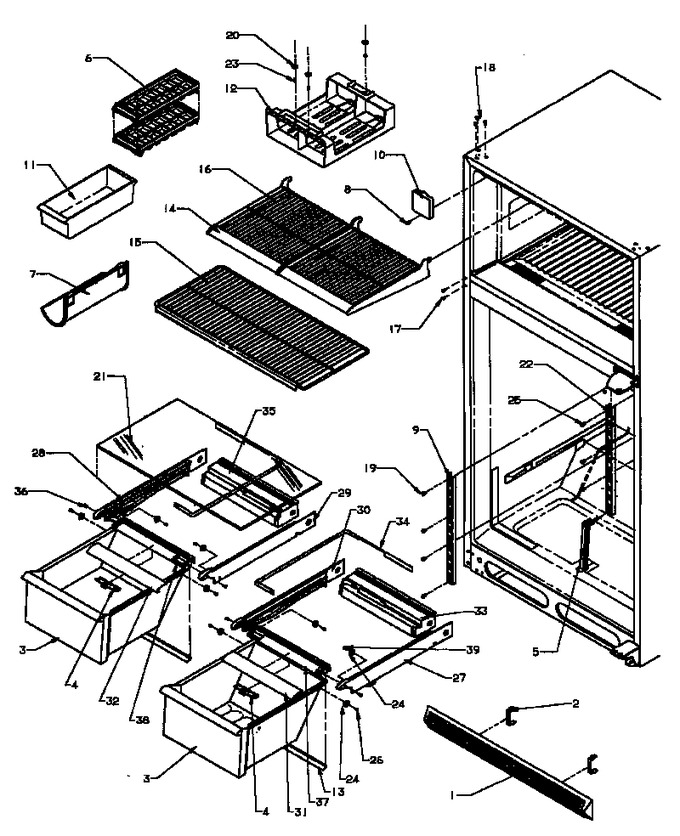

Diagram for TS18R2L (BOM: P1181803W L)
