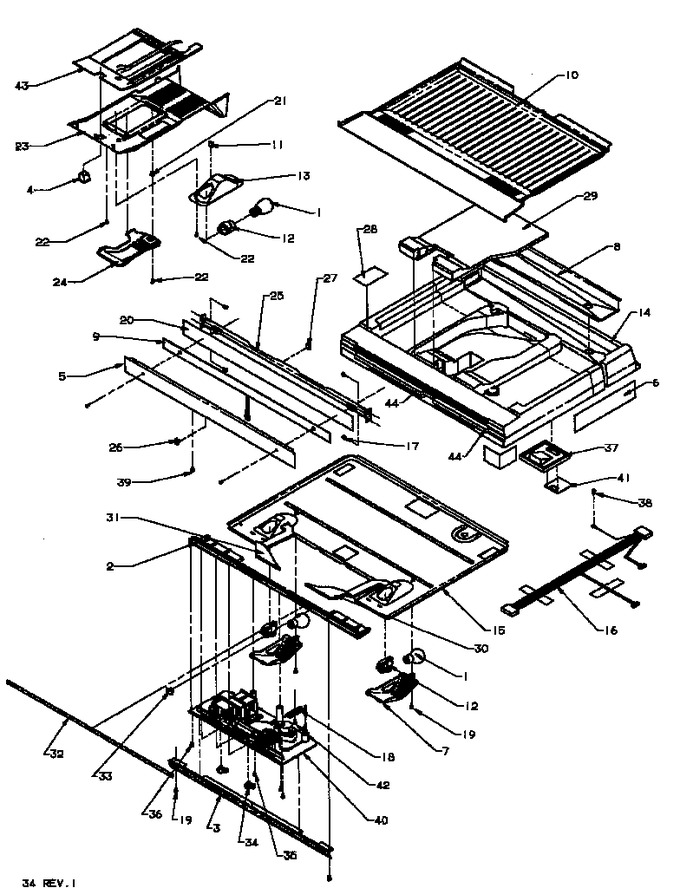

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 2 | 10435504 | Frame, Top Brkr |
|
- | |||||
| 3 | 10645601 | Extrusion, Refr Light |
|
- | |||||
| 4 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 39.09 | ||||
| 5 | 10433330 | Mullion, Center(almond) |
|
- | |||||
| 5 | 10433331 | Mullion, Center (gold) |
|
- | |||||
| 5 | 10433329 | Mullion, Center (white) |
|
- | |||||
| 6 | 10685502 | Gasket, Sealing |
|
- | |||||
| 7 | 10508701 | Shield, Refrig. Light |
|
- | |||||
| 8 | 10435911 | Tray, Drip |
|
- | |||||
| 9 | 10543601 | Heater Mull. |
|
- | |||||
| 10 | 10430604 | Bottom, Frz |
|
- | |||||
| 11 | B5733302 | Clip, Ground |
|
- | |||||
| 12 | D7714406 | Socket, Angle |
|
- | |||||
| 13 | C8730102 | Shield, Light |
|
- | |||||
| 14 | 10580201 | Assy Drain Block |
|
- | |||||
| 15 | 10437118 | Top, Refrig (e-coat) |
|
- | |||||
| 16 | 10573502 | Harness-mullion |
|
- | |||||
| 17 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 18 | 10587101 | Clamp, Cap. Tube |
|
- | |||||
| 19 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 20 | B0523584 | Insulation Per Ft. |
|
- | |||||
| 21 | M0580007 | Grommet, Screw |
|
- | |||||
| 22 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 23 | 10440403 | Duct, Frz Air |
|
- | |||||
| 24 | 10678401 | Shield, Frz Light |
|
- | |||||
| 25 | 10433604 | Plate, Center Tap |
|
- | |||||
| 26 | 10481401 | Clip, Grounding |
|
- | |||||
| 27 | B5733301 | Clip Ground |
|
- | |||||
| 28 | B5759626 | Gasket, Sealing |
|
- | |||||
| 29 | 10476401 | Insert-drain Blk |
|
- | |||||
| 32 | 10450812 | Membrane, Breaker |
|
- | |||||
| 33 | 10453001 | Cap, Switch |
|
- | |||||
| 34 | 10565401 | Knob, Control |
|
- | |||||
| 35 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 36 | M0211530 | Screw |
|
- | |||||
| 37 | 10479202 | Insert, Mt. Kpr. Air Sup |
|
- | |||||
| 38 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 39 | M0211520 | Screw - Sm |
|
- | |||||
| 40 | Y00000000 | See Note Control Assembly, See Pages 44 And 45 For Parts Breakdown |
|
- | |||||
| 41 | 10594901 | Gasket, Mk Air Supply |
|
- | |||||
| 42 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 43 | 10779601 | Insul. Air Duct |
|
- | |||||
| 44 | 10772301 | Insulation |
|
- |
