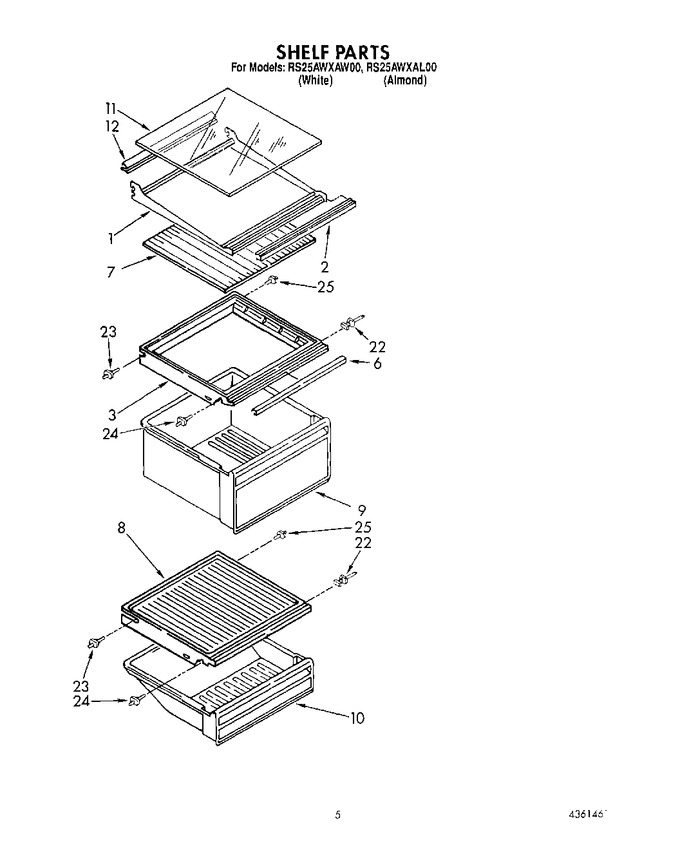

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118413		Shelf Assembly, Cantilever		Appelez-nous	-
2	2163428		Trim, Shelf		Appelez-nous	-
3	WP1126289		Cover, Crisper   (Replaces: 1126289)				$ 190.80
6	1119190		Trim, Crisper Cover		Appelez-nous	-
7	2163431		Glass, Crisper Cover		Appelez-nous	-
8	WP2148298		Cover, Meat Pan   (Replaces: 1126323)				$ 183.32
9	2163426		Pan, Crisper		Appelez-nous	-
10	2163427		Pan, Meat		Appelez-nous	-
11	2163429		Glass, Shelf		Appelez-nous	-
12	1125594		Retainer, Glass		Appelez-nous	-
22	4388538		Shelf Stud   (Replaces: 2147997)			Immediately	$ 32.85
23	1115290		Shelf Stud				$ 7.61
24	WP2149540		Shelf Stud   (Replaces: 2149540)				$ 10.96
25	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 32.85

    View Diagram in Separate Window       Print Part List
