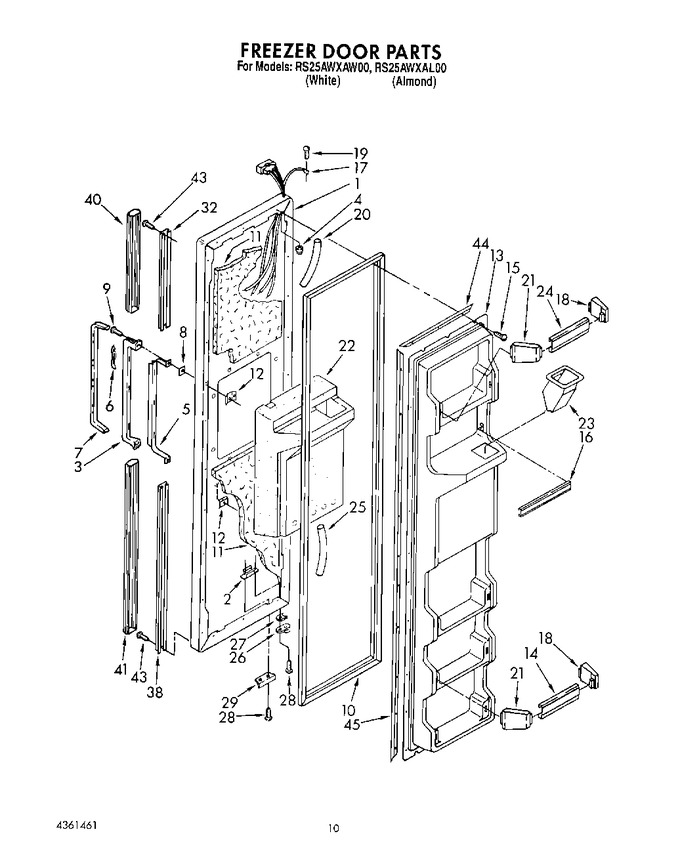

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2147506 | Freezer, Door Panel (almond (also Order Item 11)) |
|
- | |||||
| 1 | 2147504 | Freezer, Door Panel (white) |
|
- | |||||
| 2 | 988402 | Tap Plate |
|
- | |||||
| 3 | 1127464 | Handle (for Almond Model) |
|
- | |||||
| 3 | 2147470 | Handle (for White Model) |
|
- | |||||
| 4 | 939886 | Seal, Hinge Pin |
|
- | |||||
| 5 | 1127465 | Reinforcement, Handle |
|
- | |||||
| 6 | 849445 | Clip, Handle (3) |
|
- | |||||
| 7 | 2147581 | Insert, Handle |
|
- | |||||
| 8 | 2147097 | Shim, Handle (2) |
|
- | |||||
| 9 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 10 | 1127308 | Door Gasket, Magnetic |
|
- | |||||
| 11 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 12 | WP939101 | Screw Anchor (4) (Replaces: 939101) |
|
$ 7.88 | |||||
| 13 | 1124969 | Panel, Interior Door |
|
- | |||||
| 14 | 2163442 | Trim, Door Shelf |
|
- | |||||
| 15 | WP489069 | Screw, 7 X 1/2 (28) (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2163440) |
|
$ 124.32 | |||||
| 17 | 1116960 | Harness, Door |
|
- | |||||
| 18 | 1115364 | End Cap, Trim |
|
- | |||||
| 19 | WP488234 | Screw (Replaces: 488889) |
|
$ 7.08 | |||||
| 20 | 2147080 | Tube, Door Wiring (top) |
|
- | |||||
| 21 | 1115333 | End Cap, Trim |
|
- | |||||
| 22 | 1115345 | Insulation, Dispenser |
|
- | |||||
| 23 | 987188 | Chute, Ice |
|
- | |||||
| 24 | 2163441 | Trim |
|
- | |||||
| 25 | 1119060 | Tube, Door Wiring (bottom) |
|
- | |||||
| 26 | 4318165 | Door Closer, Upper Cam (Replaces: 986758) |
|
Immediately | $ 29.74 | ||||
| 27 | WP1104787 | Shim, Door Closer (Replaces: 1104787) |
|
$ 7.96 | |||||
| 28 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 8.40 | ||||
| 29 | 1115906 | Bracket, Door Stop (black) |
|
- | |||||
| 29 | 988420 | Bracket, Door Stop (chrome) |
|
- | |||||
| 32 | 2147895 | Retainer (top) |
|
- | |||||
| 38 | 2147896 | Retainer (bottom) |
|
- | |||||
| 40 | 1127470 | Extension (top) (for Almond Model) |
|
- | |||||
| 40 | 2163432 | Extension (top) (white) |
|
- | |||||
| 41 | 1127473 | Extension (bottom) (for Almond Model) |
|
- | |||||
| 41 | 2147471 | Extension (bottom) (for White Model) |
|
- | |||||
| 43 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 44 | 1118306 | Retainer, Gasket |
|
- | |||||
| 45 | 1118302 | Retainer, Gasket |
|
- |
