Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1124504 Refrigerator Door (white) Appelez-nous -
1 1124505 Refrigerator Door (almond (also Order Item 14)) Appelez-nous -
2 1124512 Trim, Door Shelf Appelez-nous -
3 1124511 Door, Compartment Appelez-nous -
4 1116707 Shelf, Compartment Appelez-nous -
5 WP488729 Screw (3)   (Replaces: 487909) In-Stock Immediately $ 8.28

6 1124513 Trim, Door Shelf Appelez-nous -
7 1124508 Insert, Handle Appelez-nous -
8 1127307 Door Gasket, Magnetic Appelez-nous -
9 509929 Cap, Hinge Sleeve Appelez-nous -
10 1119757 Handle, Center Appelez-nous -
11 941242 Screw Anchor Appelez-nous -
12 1109189 End Cap, Center Handle Appelez-nous -
13 935075 Shim Appelez-nous -
14 876029 Foam Insulation (required When Replacing Exterior Door Panel) Appelez-nous -
15 936930 End Cap, Hande Appelez-nous -
16 1124510 Insert, Handle Appelez-nous -
17 1129238 Panel, Interior Appelez-nous -
18 WP939101 Screw, Anchor   (Replaces: 939101) Special Order $ 7.88

19 WPW10141645 Screw (repair)   (Replaces: 489084) Special Order $ 8.05

19 WP489069 Screw, 7 X 1/2 (32)   (Replaces: 489101) In-Stock Immediately $ 8.40

20 4318165 Door Closer, Upper Cam   (Replaces: 1115905) In-Stock Immediately $ 29.74

21 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.96

22 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 8.40

23 1115906 Bracket, Door Stop Appelez-nous -
24 988421 Shim Appelez-nous -
25 488549 Screw, 8 X 1/2 Appelez-nous -
26 988402 Tap Plate Appelez-nous -
27 1119360 Retainer, Insert (bottom) Appelez-nous -
28 1124507 Retainer, Insert (top) Appelez-nous -
29 941259 End Cap (2) Appelez-nous -
30 489075 Screw, 10-32 X 5/8 (2) Appelez-nous -
31 489022 Screw, 6-20 X 3/8 (2) Appelez-nous -
32 534927 Hole Plug (2) Appelez-nous -
33 935076 Shim, End Cap Appelez-nous -
34 1124514 Trim, Shelf (2) Appelez-nous -
35 1118301 Gasket Retainer, Top & Bottom Appelez-nous -
36 1118302 Gasket Retainer, Side (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

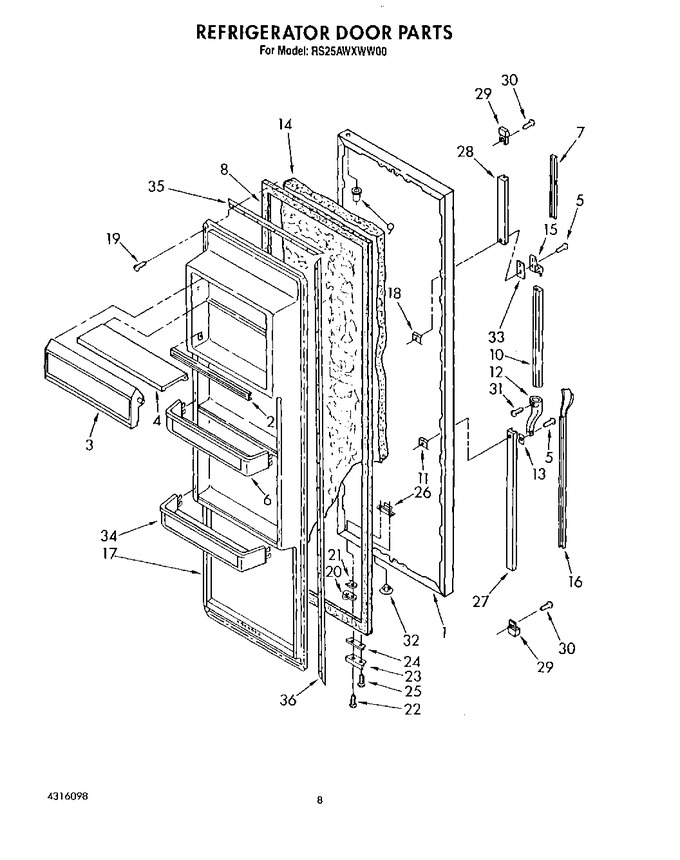

Diagram for RS25AWXWW00
