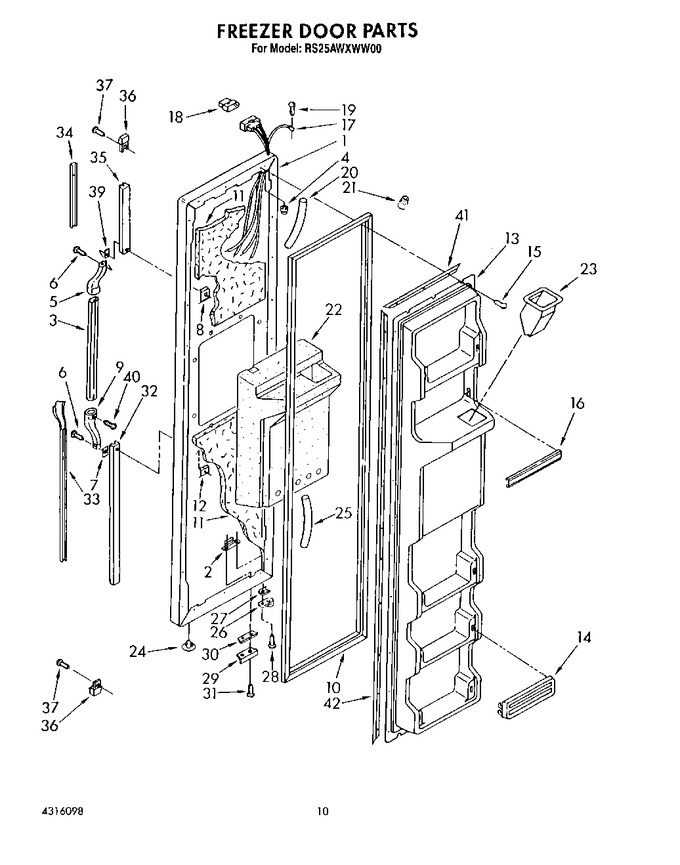

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1124519 | Freezer, Door Panel (white) |
|
- | |||||
| 1 | 1124520 | Freezer, Door Panel (almond (also Order Item 11)) |
|
- | |||||
| 2 | 988402 | Tap Plate |
|
- | |||||
| 3 | 1119757 | Handle, Center |
|
- | |||||
| 4 | 939886 | Seal, Hinge Pin |
|
- | |||||
| 5 | 936930 | End Cap, Handle |
|
- | |||||
| 6 | WP488729 | Screw (3) (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 7 | 935075 | Shim, End Cap |
|
- | |||||
| 8 | WP939101 | Screw Anchor (3) (Replaces: 939101) |
|
$ 7.88 | |||||
| 9 | 1109189 | End Cap, Handle |
|
- | |||||
| 10 | 1127308 | Door Gasket, Magnetic |
|
- | |||||
| 11 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 12 | 941242 | Screw Anchor |
|
- | |||||
| 13 | 1129231 | Panel, Interior Door |
|
- | |||||
| 14 | 1124525 | Trim, Shelf (4) |
|
- | |||||
| 15 | WP489069 | Screw, 7 X 1/2 (28) (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 15 | WPW10141645 | Screw (repair) (Replaces: 489084) |
|
$ 8.05 | |||||
| 16 | 1124524 | Trim, Door Shelf |
|
- | |||||
| 17 | 1116960 | Harness, Door (includes Item 18) |
|
- | |||||
| 18 | 936183 | Connector, Plug |
|
- | |||||
| 19 | WP488234 | Screw, 8-32 X 5/32 (Replaces: 488889) |
|
$ 7.08 | |||||
| 20 | 1119060 | Tube, Door Wiring |
|
- | |||||
| 21 | 227991 | Wire Connector |
|
- | |||||
| 22 | 1115345 | Insulation, Dispenser |
|
- | |||||
| 23 | 987188 | Chute, Ice |
|
- | |||||
| 24 | 534927 | Hole Plug (2) |
|
- | |||||
| 25 | 2147080 | Tube, Door Wiring |
|
- | |||||
| 26 | 4318165 | Door Closer, Upper Cam (Replaces: 1115905) |
|
Immediately | $ 29.74 | ||||
| 27 | WP1104787 | Shim, Door Closer (Replaces: 1104787) |
|
$ 7.96 | |||||
| 28 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 8.40 | ||||
| 29 | 1115906 | Bracket, Door Stop |
|
- | |||||
| 30 | 988421 | Shim |
|
- | |||||
| 31 | 488549 | Screw, 8 X 5/8 |
|
- | |||||
| 32 | 1119360 | Retainer, Insert |
|
- | |||||
| 33 | 1124510 | Insert, Handle |
|
- | |||||
| 34 | 1124508 | Insert, Handle |
|
- | |||||
| 35 | 1124507 | Retainer, Insert |
|
- | |||||
| 36 | 941259 | End Cap (2) |
|
- | |||||
| 37 | 489075 | Screw, 10-32 X 5/8 (2) |
|
- | |||||
| 39 | 935076 | Shim, End Cap |
|
- | |||||
| 40 | 489022 | Screw, 6-20 X 3/8 (2) |
|
- | |||||
| 41 | 1118306 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 42 | 1118302 | Gasket Retainer, Side (2) |
|
- |
