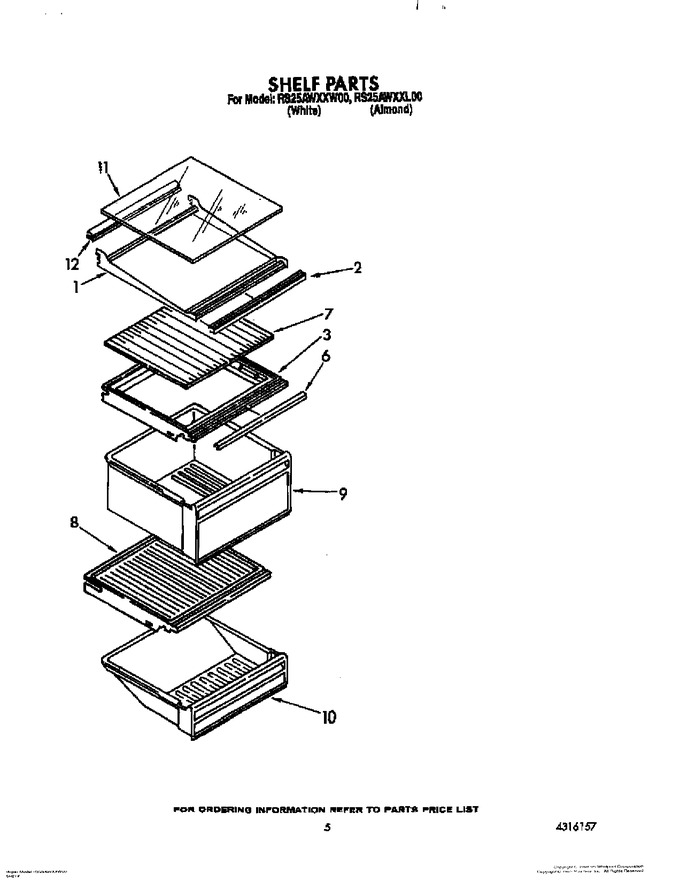

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118413		Shelf Assembly, Cantilever		Appelez-nous	-
2	1124421		Trim, Shelf		Appelez-nous	-
3	WP1126289		Cover, Crisper   (Replaces: 1124417)				$ 190.80
6	1119190		Trim, Crisper Cover		Appelez-nous	-
7	1124419		Glass, Crisper Cover		Appelez-nous	-
8	WP2148298		Cover, Meat Pan   (Replaces: 2148304)				$ 183.32
9	1124418		Pan, Crisper		Appelez-nous	-
10	1124533		Pan, Meat		Appelez-nous	-
11	1124532		Glass, Shelf		Appelez-nous	-
12	1123908		Retainer, Glass		Appelez-nous	-
