Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2147499 Refrigerator Door (also Order Item 39) (almond) Appelez-nous -
1 2147497 Refrigerator Door (also Order Item 39) (white) Appelez-nous -
2 1124512 Trim, Door Shelf Appelez-nous -
3 1124511 Door, Compartment Appelez-nous -
4 1116707 Shelf, Compartment Appelez-nous -
6 1124513 Trim, Door Shelf Appelez-nous -
7 1127470 Extension (top) Appelez-nous -
8 1127307 Door Gasket, Magnetic Appelez-nous -
9 509929 Cap, Hinge Sleeve Appelez-nous -
10 1127464 Handle Appelez-nous -
12 1127465 Reinforcement, Handle Appelez-nous -
13 849445 Clip, Handle Appelez-nous -
14 876029 Foam Insulation (required When Replacing Exterior Door Panel) Appelez-nous -
15 2147097 Shim, Handle Appelez-nous -
16 1127480 Extension, Middle Appelez-nous -
17 1129238 Panel, Interior Appelez-nous -
18 WP939101 Screw, Anchor   (Replaces: 939101) Special Order $ 7.88

19 WP489069 Screw   (Replaces: 489101) In-Stock Immediately $ 8.40

20 4318165 Door Closer, Upper Cam   (Replaces: 1115905) In-Stock Immediately $ 29.74

21 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.96

22 WP489069 Screw   (Replaces: 488938) In-Stock Immediately $ 8.40

23 1115906 Bracket, Door Stop Appelez-nous -
24 988421 Shim Appelez-nous -
26 988402 Tap Plate Appelez-nous -
27 WPW10141645 Screw   (Replaces: 489084) Special Order $ 8.05

28 2147581 Insert, Handle Appelez-nous -
29 2147895 Retainer (top) Appelez-nous -
30 2147896 Retainer (bottom) Appelez-nous -
31 1127473 Extension (bottom) Appelez-nous -
32 534927 Hole Plug Appelez-nous -
33 2147897 Retainer, Middle Appelez-nous -
34 1124514 Trim, Shelf Appelez-nous -
35 1118301 Gasket Retainer, Top & Bottom Appelez-nous -
36 1118302 Gasket Retainer Appelez-nous -
37 4211287 Panel Kit. See Kit 4211287 For Individual Parts Appelez-nous -
37 WP489478 Screw   (Replaces: 489242) Special Order $ 8.18

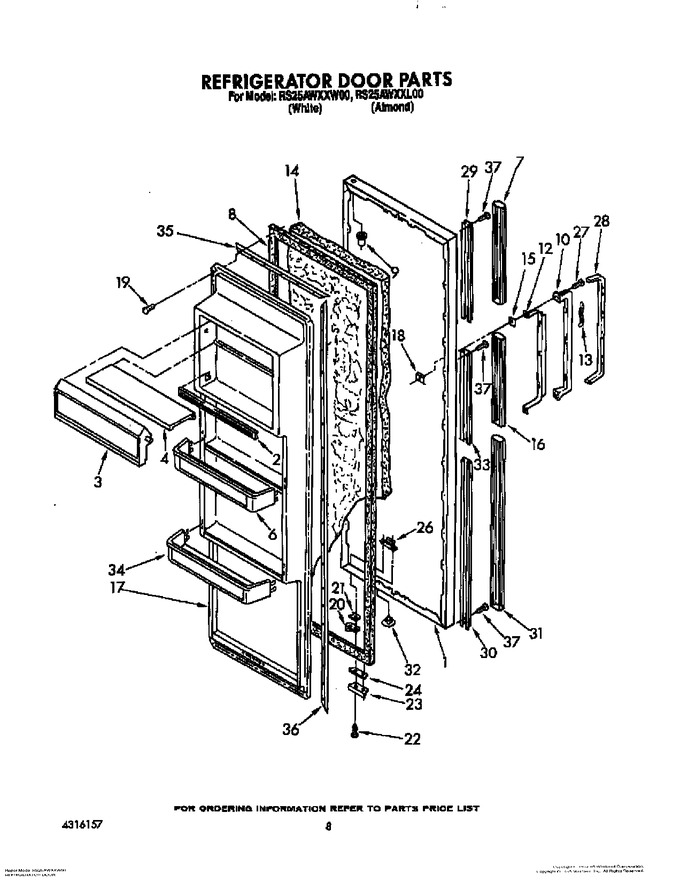

    View Diagram in Separate Window     Print Icon   Print Part List
