Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10928301W Assy Ref Dr Fm Appelez-nous -
12 10928403W Assy Frz Dr Fm Appelez-nous -
21 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

22 M0219730 Screw Special Order $ 7.65

25 12325502 Handle, W Ref Appelez-nous -
26 R0179261 Kit, W Fz Handle Appelez-nous -
31 M0219730 Screw Special Order $ 7.65

32 B0523593 Insulation, Batt Frz. Dr. Appelez-nous -
35 10907401 Cap, W Dr Handle Appelez-nous -
36 10907402 Cap, W Dr Handle Appelez-nous -
42 12968202W Stop, Door (wht)   (Replaces: 10447108) Special Order $ 69.29

45 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

46 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

52 10202001 Clip, Retainer Appelez-nous -
55 M0221744 Screw-sm Shldr Appelez-nous -
56 M0221744 Screw-sm Shldr Appelez-nous -
62 10456836 Gasket,fz Dr(white) Appelez-nous -
63 10961001 Bushing, Door (wht) Appelez-nous -
64 10961001 Bushing, Door (wht) Appelez-nous -
72 10609201 Liner, Frz Door Appelez-nous -
76 10926601 Nameplate, Handle Appelez-nous -
81 12968202W Stop, Door (wht)   (Replaces: 10447108) Special Order $ 69.29

85 10609805 Retainer, Ref Door Appelez-nous -
86 10992117 Insert, Nameplate Appelez-nous -
92 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 8.21

102 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

105 12163301 Door, Dairy Appelez-nous -
106 10609306 Retainer, Ref Door Appelez-nous -
114 M0310338 Plug Button Almond Appelez-nous -
115 10420007 Shelf, Ref Door Appelez-nous -
123 M0310338 Plug Button Almond Appelez-nous -
125 12163202 Shelf, Dairy Appelez-nous -
126 10420007 Shelf, Ref Door Appelez-nous -
131 10456835 Gasket,ref Dr(white) Appelez-nous -
135 12044401 Clip-door Cap Appelez-nous -
136 12044401 Clip-door Cap Appelez-nous -
145 10913501 Cap, W Dr Handle Appelez-nous -
146 10913501 Cap, W Dr Handle Appelez-nous -
151 10609701 Liner, Refrig Door Appelez-nous -
165 10431702 Shelf, Snack Stop Appelez-nous -
175 10431004 Door, Snack Stop Appelez-nous -
191 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 8.21

211 10609306 Retainer, Ref Door Appelez-nous -
221 10202001 Clip, Retainer Appelez-nous -
254 12028601 Bushing, Door (wht) Appelez-nous -
264 10252903 Filter, Bushing Appelez-nous -
5004 10686401 Plug Button Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

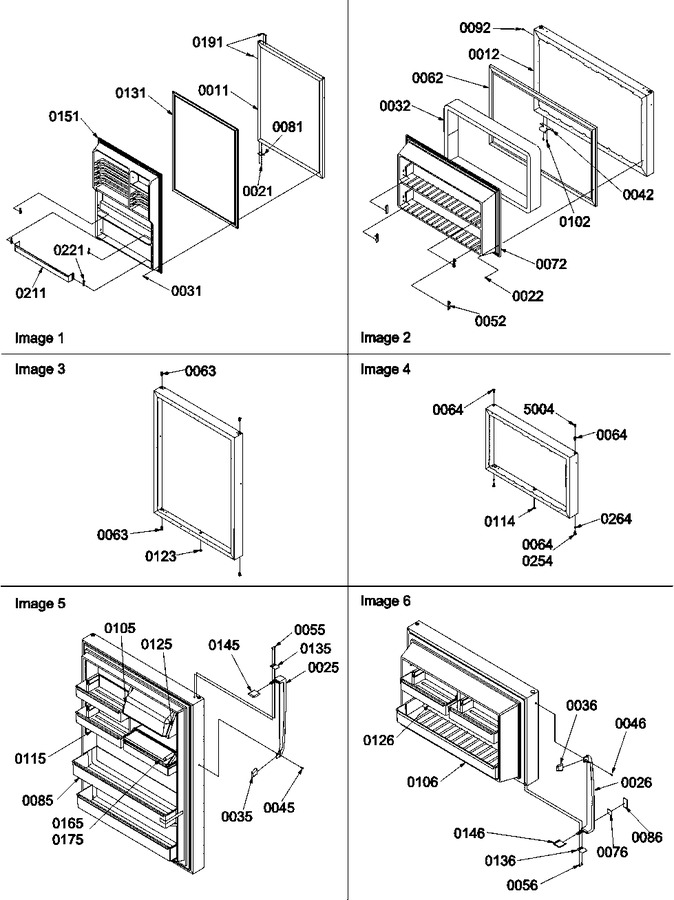

Diagram for TSI25VW (BOM: P1308102W W)
