Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

12 10436603 Cover, Glass Shelf Rail Appelez-nous -
13 10433803 Rail, Crisper Back Appelez-nous -
22 10436604 Cover, Glass Shelf Rail Appelez-nous -
23 10467806 Band, Crisper Cont Appelez-nous -
31 10451406 Extr, Mk Rear Appelez-nous -
32 10562504 Ext, Gl Shelf Side Appelez-nous -
33 10797501 Slide, Crisper Appelez-nous -
41 10450322 Extr-mk Front Appelez-nous -
42 Y10370062 Glass, Shelf Appelez-nous -
43 10432703 Rail, Side Crisper Appelez-nous -
51 10629301 Sleeve, Mk Appelez-nous -
52 10681402 Rail, Pntd Appelez-nous -
53 10432704 Rail, Side Crisper Appelez-nous -
61 10681403 Rail, Pnt Appelez-nous -
62 10436907 Extr, Glass Shelf Rear Appelez-nous -
63 10432805 Rail, Ctr. Crisper Special Order $ 21.50

71 10681402 Rail, Pntd Appelez-nous -
72 10436818 Ext-gl Shlf Front Appelez-nous -
73 10432806 Rail, Ctr. Crisper Special Order $ 23.67

81 10445704 Scoop, Air Appelez-nous -
82 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

83 10687901 Rail, Crisper Fr (r) Appelez-nous -
91 10588201 Slide, Mtkp Cont. Appelez-nous -
93 10687902 Rail, Crisper Fr (l) Appelez-nous -
101 10454005 Band, Mk Control Appelez-nous -
103 10435603 Rail, Crisper Back Appelez-nous -
111 10417301 Glide, Meat Kpr. Appelez-nous -
113 10481001 Roller, Pan Special Order $ 10.99

121 10432101 Glide, Meat Kpr. Appelez-nous -
131 10629203 Pan, Mk Appelez-nous -
133 Y10370063 Glass, Shelf Appelez-nous -
141 Y10370062 Glass, Shelf Appelez-nous -
151 10562504 Ext, Gl Shelf Side Appelez-nous -
171 10481001 Roller, Pan Special Order $ 10.99

173 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

183 10688050 Extr-r Crisp Front Appelez-nous -
191 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

193 10688049 Extr-l Crisp Front Appelez-nous -
203 10530206 Seal, Crisper Appelez-nous -
213 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

251 Y12019303 Spacer-mk Slide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

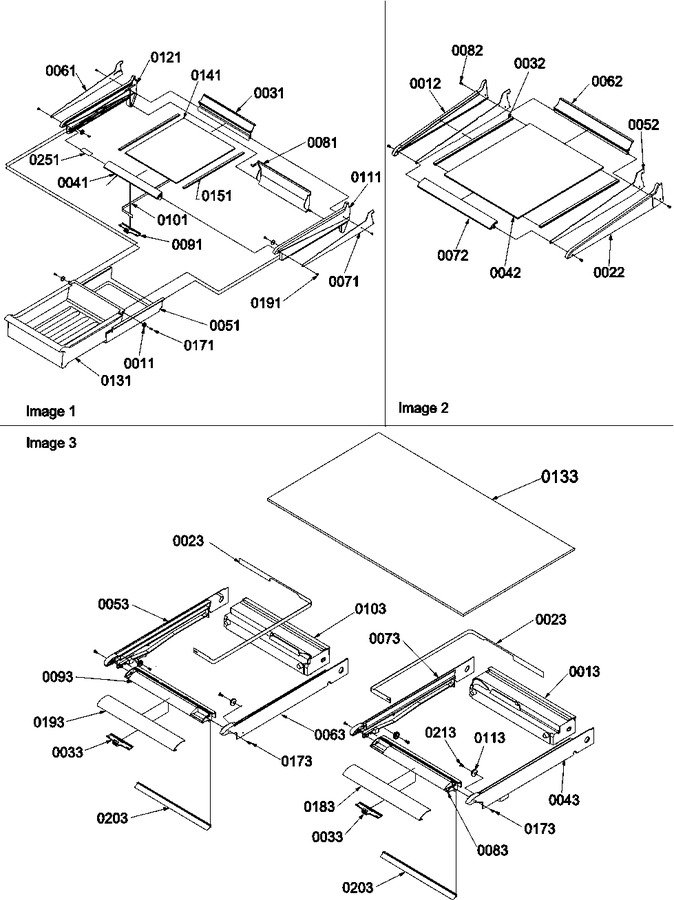

Diagram for TSI25VW (BOM: P1308102W W)
