SELECT A DIAGRAM

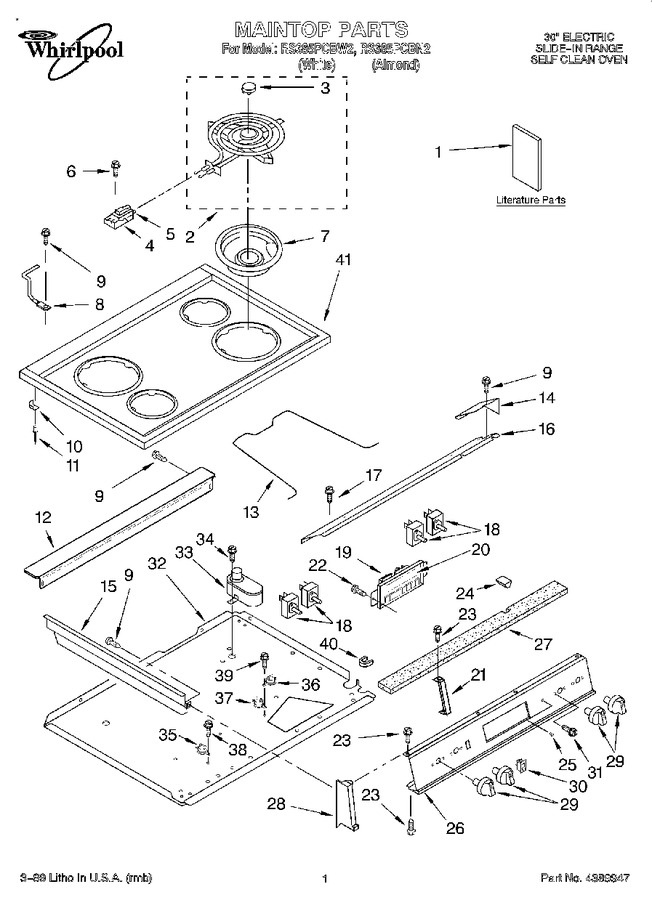

01 - Maintop, Literature


02 - Oven Door


03 - Lock Motor


04 - Oven Body


05 - Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4389351		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT4389354		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT4389357		Literature Parts (tech Sheet)		Appelez-nous	-
2	4389909		Element, Surface (includes Illus 3) (8`` Coil (2))		Appelez-nous	-
2	4389908		Element, Surface (includes Illus 3) (6`` Coil (2))		Appelez-nous	-
3	4389907		Medallion (4)		Appelez-nous	-
4	330031		Block, Terminal   (Replaces: 4389596)			Immediately	$ 16.09
5	WP4332752		Clip, Term Block   (Replaces: 4389597)				$ 7.60
6	4389652		Screw, Term Block		Appelez-nous	-
7	4389589		Bowl, Burner (6`` Black (2))		Appelez-nous	-
7	4389590		Bowl, Burner (8`` Black (2))		Appelez-nous	-
8	4389390		Hinge, Maintop (left)		Appelez-nous	-
8	4389389		Hinge, Maintop (right)		Appelez-nous	-
9	WP308685		Screw, Mounting   (Replaces: 4389529)			Immediately	$ 7.87
10	4389392		Bracket, Hinge (2)		Appelez-nous	-
11	4389653		Screw, Hinge Brkt.		Appelez-nous	-
12	4389872		Filler, Backsplash (white)		Appelez-nous	-
12	4389964		Filler, Backsplash (almond)		Appelez-nous	-
13	4389598		Rod, Top Support		Appelez-nous	-
14	4389582		Cover, Wire		Appelez-nous	-
15	4389560		Speednut		Appelez-nous	-
15	4389364		Extension, Side (2)		Appelez-nous	-
16	4389599		Cover, Wire		Appelez-nous	-
17	4389646		Screw, Utility		Appelez-nous	-
18	W10900107		Control, Element (r.f. & L.r.)   (Replaces: 4389571)			Immediately	$ 57.63
18	W10900107		Control, Element (l.f. & R.r.)   (Replaces: 4389572)			Immediately	$ 57.63
19	4389570		Erc		Appelez-nous	-
20	4389366		Plate, Clock		Appelez-nous	-
21	4389372		Bracket, Clock (2)		Appelez-nous	-
22	4389650		Screw, Bracket (4)		Appelez-nous	-
23	W11233072		Screw, Panel (8)   (Replaces: 4389647)			Immediately	$ 14.02
24	4389577		Light, Oven Ind.		Appelez-nous	-
25	WP9750343		Lens, Ind. Light   (Replaces: 4389578)			Immediately	$ 5.71
26	4389568		Panel, Control		Appelez-nous	-
27	4389594		Insulation, Panel		Appelez-nous	-
28	4389360		Endcap (r.h.)		Appelez-nous	-
28	4389411		Endcap (l.h.)		Appelez-nous	-
29	4389573		Knob, Control (4)		Appelez-nous	-
30	WP4314961		Switch, Oven Lite   (Replaces: 4389369)				$ 89.48
31	4389649		Screw, Mtg. (8)		Appelez-nous	-
32	4389969		Bottom, Burner Box		Appelez-nous	-
33	4389595		Vent Tube Assy.		Appelez-nous	-
34	4389646		Screw, Mtg.		Appelez-nous	-
35	4389603		Switch,		Appelez-nous	-
36	4389604		Switch		Appelez-nous	-
37	4389605		Switch,		Appelez-nous	-
38	4389654		Screw (6)				$ 13.89
39	4389650		Screw (4)		Appelez-nous	-
40	4389581		Grommet (hose (2))		Appelez-nous	-
40	4389580		Grommet (top)		Appelez-nous	-
41	4389753		Cooktop (almond)		Appelez-nous	-
41	4389584		Cooktop (white)		Appelez-nous	-
