SELECT A DIAGRAM

01 - Maintop, Literature


02 - Oven Door


03 - Lock Motor


04 - Oven Body


05 - Fan

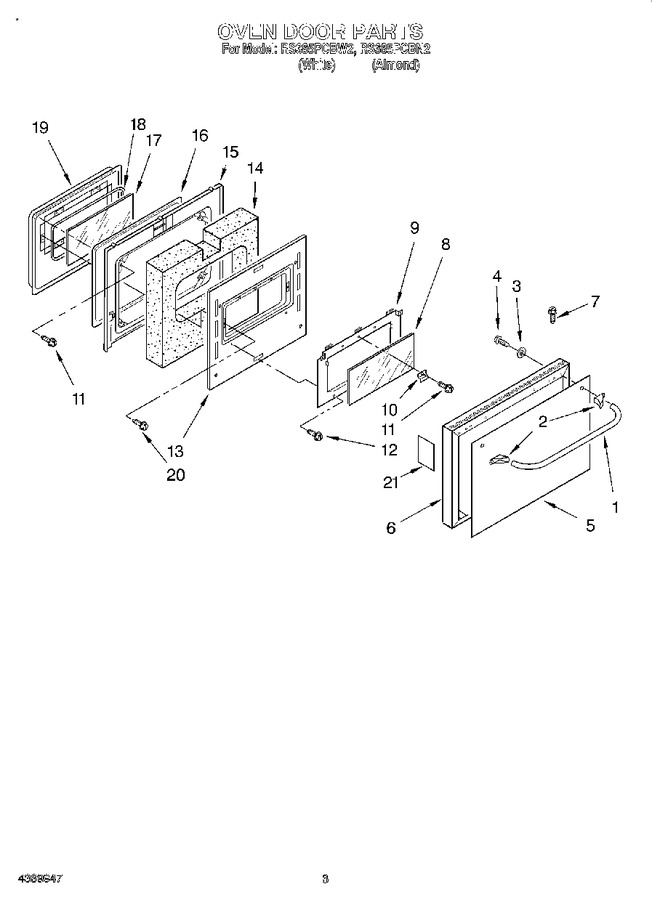

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4389413		Handle, Oven Door (white)		Appelez-nous	-
1	4389855		Handle, Oven Door (almond)		Appelez-nous	-
2	4389522		Endcap, Handle (white)		Appelez-nous	-
2	4389858		Endcap, Handle (almond)		Appelez-nous	-
3	4389416		Spacer, Handle (2) (white)		Appelez-nous	-
3	4389857		Spacer, Handle (2) (almond)		Appelez-nous	-
4	4389657		Screw, Handle (2)		Appelez-nous	-
5	4389854		Glass, Outer Door (almond)		Appelez-nous	-
5	4389575		Glass, Outer Door (white)		Appelez-nous	-
6	4389915		Frame, Oven Door (almond)		Appelez-nous	-
6	4389415		Frame, Oven Door (white)		Appelez-nous	-
7	4389552		Screw, Frame (6)		Appelez-nous	-
8	4389402		Glass, Middle		Appelez-nous	-
9	4389399		Plate, Glass Mtg.		Appelez-nous	-
10	4389398		Retainer, Glass		Appelez-nous	-
11	4389540		Screw, Retainer		Appelez-nous	-
12	4389534		Screw, Retainer		Appelez-nous	-
13	4389397		Retainer, Insulation		Appelez-nous	-
14	4389394		Insulation, Door		Appelez-nous	-
15	4389940		Lining, Door		Appelez-nous	-
16	4389600		Gasket, Oven Door		Appelez-nous	-
17	4389403		Glass, Inner		Appelez-nous	-
18	4389408		Seal, Inner Glass		Appelez-nous	-
19	4389928		Plug, Oven Door		Appelez-nous	-
20	WP308685		Screw   (Replaces: 4389529)			Immediately	$ 7.87
21	4389405		Insulator, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
