SELECT A DIAGRAM
01 - Maintop
02 - Oven Door

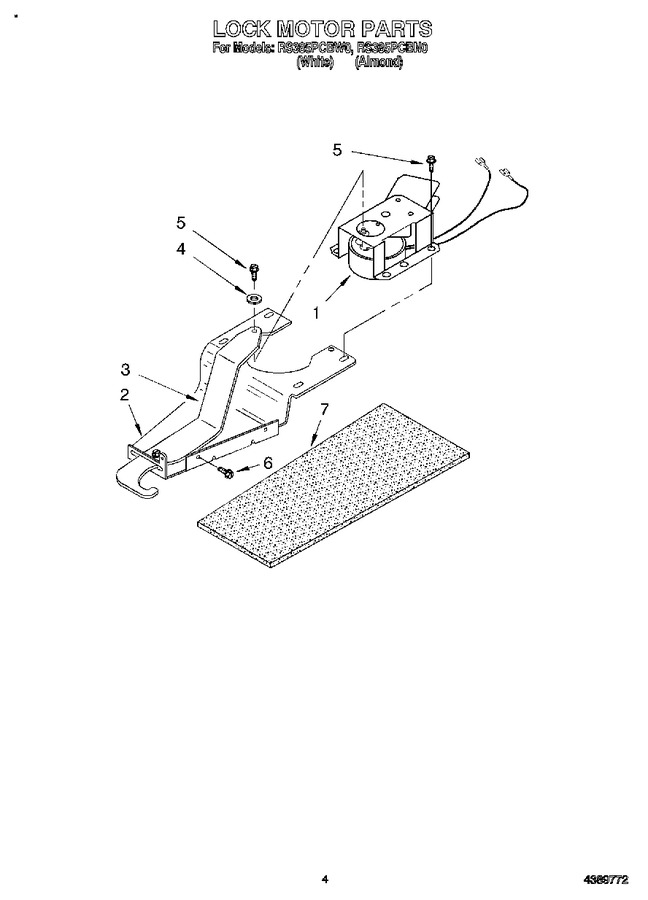

03 - Lock Motor
04 - Oven Body
05 - Fan, Literature
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4389419 | Motor, Lock |
|
- | |||||
| 2 | 4389607 | Plate, Door Lock |
|
- | |||||
| 3 | 4389608 | Lever, Lock |
|
- | |||||
| 4 | 4389659 | Washer |
|
- | |||||
| 5 | WP90767 | Screw (4) (Replaces: 4389526) |
|
Immediately | $ 8.25 | ||||
| 6 | WP308685 | Screw (5) (Replaces: 4389535) |
|
Immediately | $ 7.87 | ||||
| 7 | 4389606 | Insulation, Motor |
|
- |
