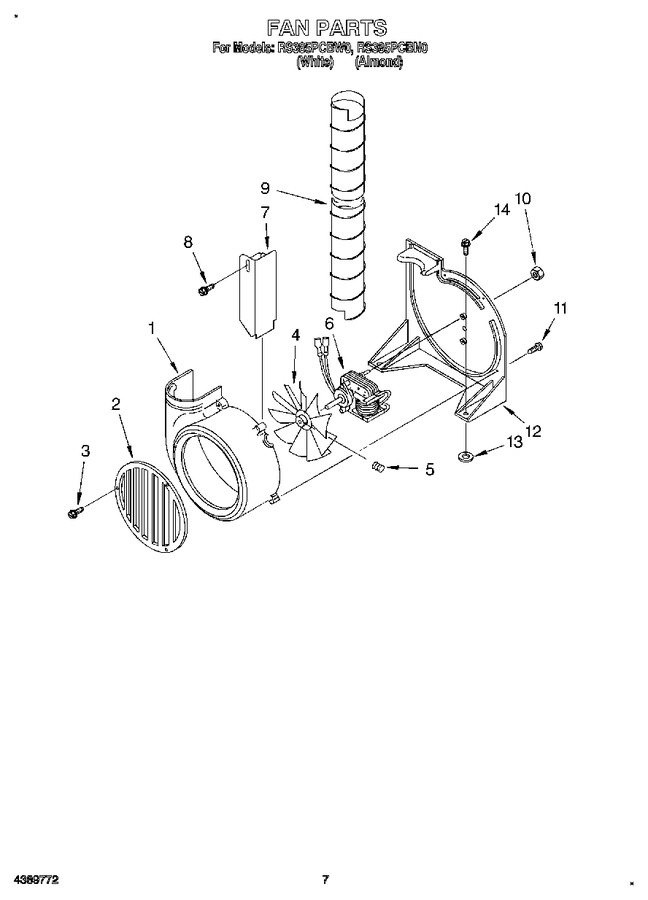

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4389643 | Housing, Fan |
|
- | |||||
| 2 | 4389645 | Grill, Fan |
|
- | |||||
| 3 | 4389655 | Screw |
|
- | |||||
| 4 | 4389642 | Blade, Fan |
|
- | |||||
| 5 | 4389656 | Set Screw |
|
- | |||||
| 6 | 4389641 | Motor, Fan |
|
- | |||||
| 7 | 4389670 | Raceway, Wire |
|
- | |||||
| 8 | 4389540 | Screw |
|
- | |||||
| 9 | 4389640 | Hose, Flexible |
|
- | |||||
| 10 | 4389661 | Nut, Hex |
|
- | |||||
| 11 | 4389655 | Screw |
|
- | |||||
| 12 | 4389644 | Plate, Fan |
|
- | |||||
| 13 | 4389601 | Washer, Felt (4) |
|
- | |||||
| 14 | 4389646 | Screw |
|
- | |||||
| LIT4389351 | Use & Care Guide |
|
- | ||||||
| LIT4389357 | Tech Sheet |
|
- | ||||||
| LIT4389354 | Instructions, Installation |
|
- |
