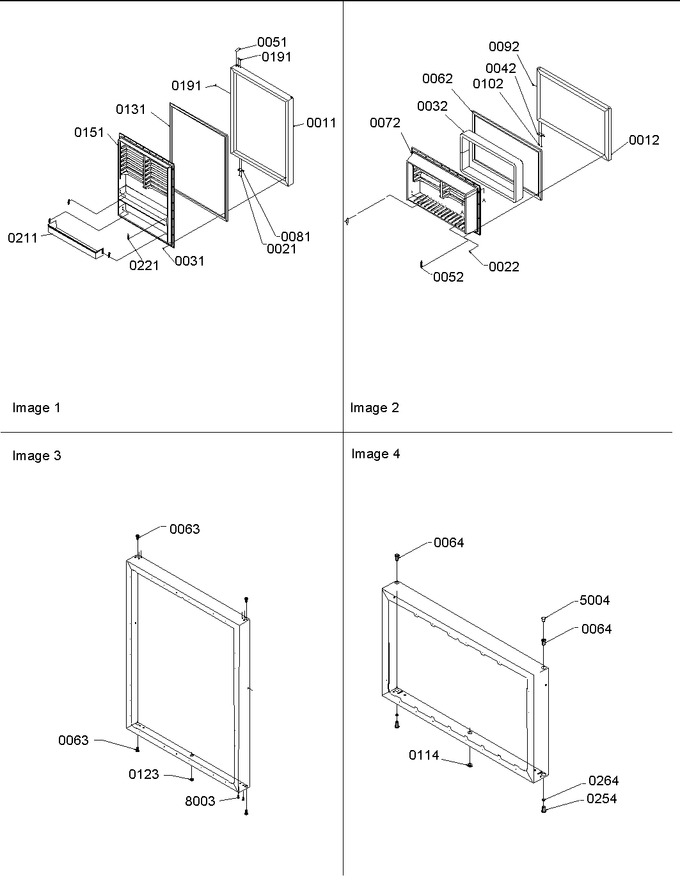

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10925413W		Assy Ref. Door Fm		Appelez-nous	-
12	10925611W		Assy, Fz Dr (white)		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
32	B0523593		Insulation, Batt Frz. Dr.		Appelez-nous	-
42	12968202W		Stop, Door (wht)   (Replaces: 10447108)				$ 69.29
51	12470501		Plug Button (wh)		Appelez-nous	-
52	10202001		Clip, Retainer		Appelez-nous	-
62	WP12550110Q		Gasket-w Fz Dr   (Replaces: 10456854)				$ 298.65
63	10961001		Bushing, Door (wht)		Appelez-nous	-
64	10961001		Bushing, Door (wht)		Appelez-nous	-
72	10461101Q		Liner, Freezer Dr		Appelez-nous	-
81	12968202W		Stop, Door (wht)   (Replaces: 10447108)				$ 69.29
92	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 8.21
102	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
114	M0310308		Plug, Button (wht)		Appelez-nous	-
123	M0310308		Plug, Button (wht)		Appelez-nous	-
131	WP12550109Q		Gasket,ref Dr(white)   (Replaces: 10456853)			Immediately	$ 322.33
151	10461801		Liner, Refr Door (19)		Appelez-nous	-
191	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 8.21
211	10419207		Retainer, Ref Door		Appelez-nous	-
221	10202001		Clip, Retainer		Appelez-nous	-
254	12028601		Bushing, Door (wht)		Appelez-nous	-
264	10252903		Filter, Bushing		Appelez-nous	-
5004	10686401		Plug Button		Appelez-nous	-
8003	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
