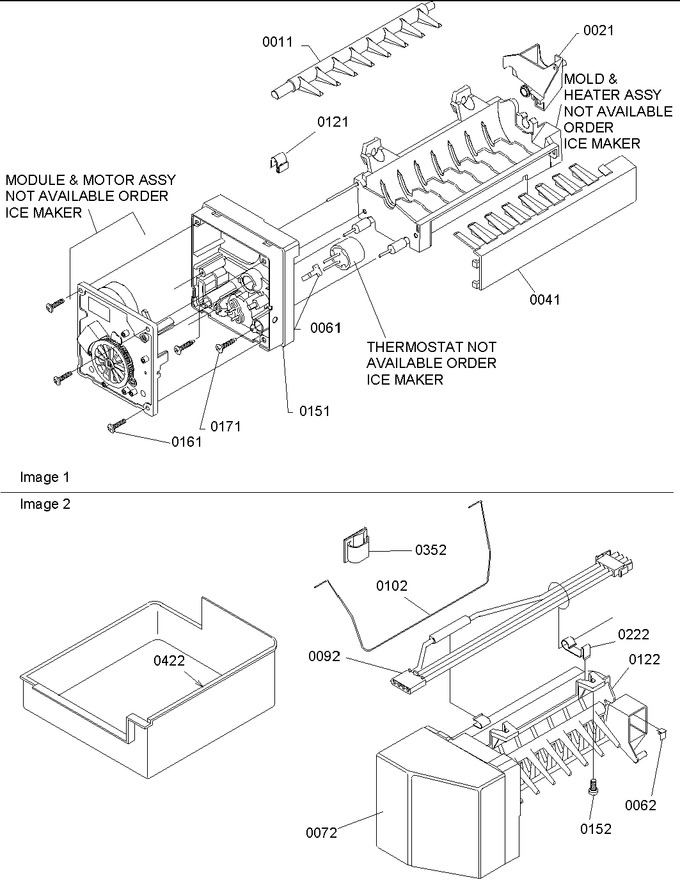

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WP627843		Ejector   (Replaces: R0183119)				$ 87.78
21	WP628356		Cup, Water Fill/bearing   (Replaces: R0156839)				$ 53.75
41	WP2182124		Stripper, Ice   (Replaces: R0183120)				$ 90.35
61	WP2315522		Retainer   (Replaces: R0191094)				$ 11.60
62	B5720302		Clip		Appelez-nous	-
72	WPW10289690		Cover, Ice Maker   (Replaces: 10519806)			Immediately	$ 8.82
92	WPD7813010		Harness, Ice Maker Mod   (Replaces: D7813004)			Immediately	$ 73.97
102	WP67004028		Arm, I.m. Shut-off   (Replaces: 10884401)			Immediately	$ 95.92
121	WP628379		Clip, Thermal Fuse   (Replaces: 10319801)				$ 11.10
122	D7824706Q		Ice Maker   (Replaces: D7824705)			Immediately	$ 167.35
151	WP2195914		Support   (Replaces: R0183121)				$ 109.80
152	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
161	R0186041		Screw		Appelez-nous	-
171	R0186040		Screw		Appelez-nous	-
222	10526701		Clamp, Wire		Appelez-nous	-
352	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
422	WP67001255		Pan, Ice   (Replaces: 10476207)				$ 213.23
	NOTE:		Note: D7824705 Ice Maker Does Not Include Cover, Harness, Shut-off Arm, And Bracket. Not All Parts Warranted As An Assy. Must Order Piece Parts With The Excep		Appelez-nous	-
NI	A3036901		Label Warranty		Appelez-nous	-
NI	10244904		Coupling				$ 25.37
NI	10527043		Instr-install		Appelez-nous	-
NI	10834701		Label, Im		Appelez-nous	-
NI	M0311301		Plug Button		Appelez-nous	-
