Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

2 10435512 Frame, Ref Top Brk Appelez-nous -
3 10645602 Extrusion, Rear Light Appelez-nous -
4 W11384469 Switch   (Replaces: C3680304) In-Stock Immediately $ 39.09

5 10433347 Mullion, Center (white) Appelez-nous -
6 10685502 Gasket, Sealing Appelez-nous -
7 10508701 Shield, Refrig. Light Appelez-nous -
8 10435912 Tray, Drip Appelez-nous -
9 10543602 Heater, Mullion Appelez-nous -
10 10995002 Freezer Bottom Appelez-nous -
11 B5733302 Clip, Ground Appelez-nous -
12 D7714406 Socket, Angle Appelez-nous -
13 C8730102 Shield, Light Appelez-nous -
14 10996101 Block-drain Appelez-nous -
15 10437122 Top, Refrig. (e-coat) Appelez-nous -
16 10573504 Harness, Mullion Appelez-nous -
17 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

18 10772301 Insulation Appelez-nous -
19 Y00000000 See Note Control Assembly -- (see Pages 24 And 25 For Parts Breakdown) Appelez-nous -
20 B0523584 Insulation Per Ft. Appelez-nous -
21 M0580007 Grommet, Screw Appelez-nous -
22 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

23 10440403 Duct, Frz Air Appelez-nous -
24 10678401 Shield, Frz Light Appelez-nous -
25 10433611 Plate, Center Tap Appelez-nous -
26 10779601 Insul. Air Duct Appelez-nous -
27 10594901 Gasket, Mk Air Supply Appelez-nous -
28 B5759626 Gasket, Sealing Appelez-nous -
29 10476401 Insert-drain Blk Appelez-nous -
32 10450831 Membrane, Breaker Appelez-nous -
33 10453001 Cap, Switch Appelez-nous -
34 10565401 Knob, Control Appelez-nous -
35 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

36 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

37 10995201 Insert-mk Air Sply Appelez-nous -
38 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

39 M0211520 Screw - Sm Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

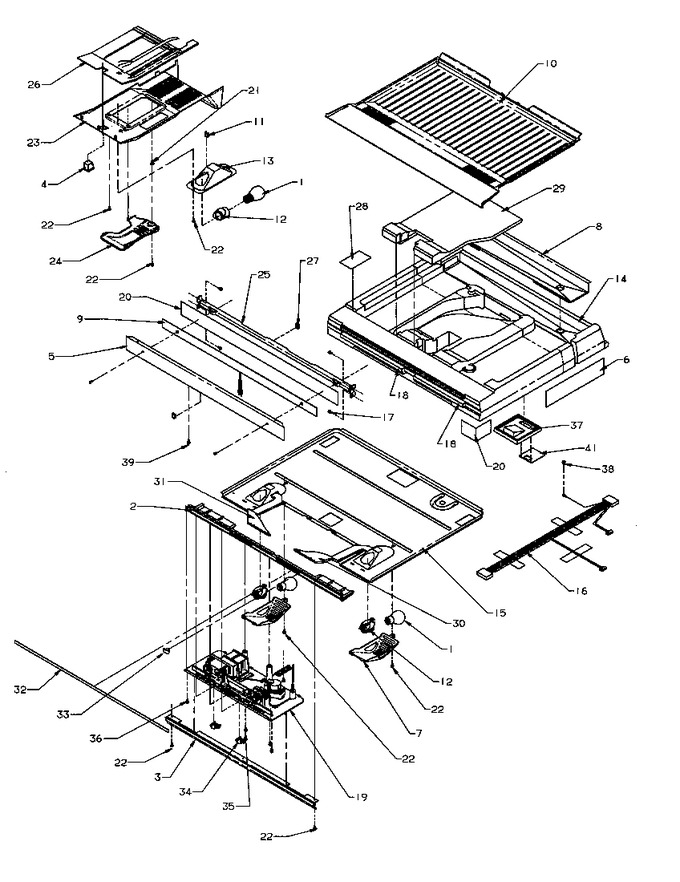

Diagram for TX22S3 (BOM: P1196001W W)
