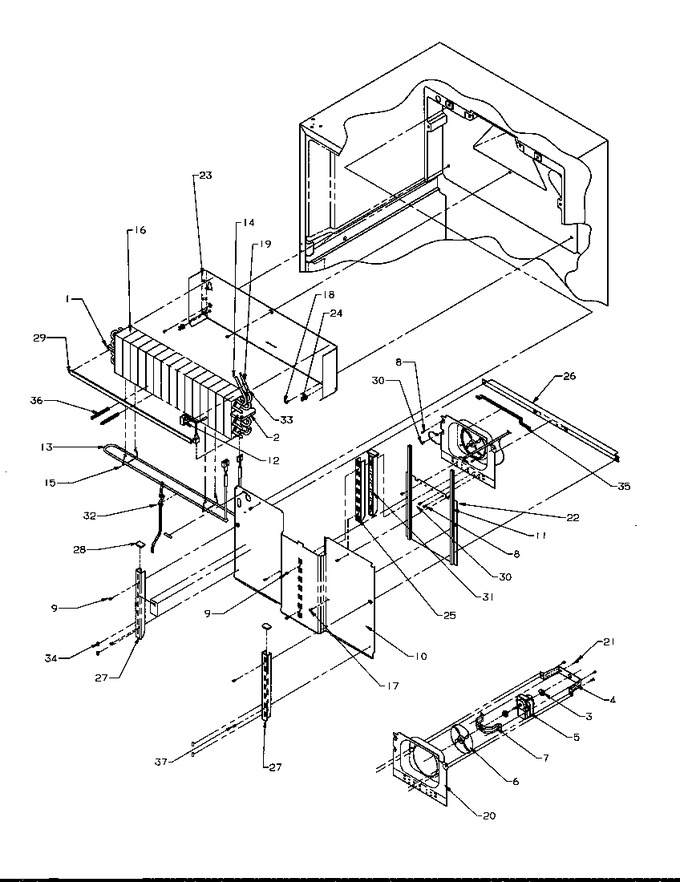

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10428301		Block, Evap. L.		Appelez-nous	-
2	10991001		Block-r Evap		Appelez-nous	-
3	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
4	10492801		Brkt, Up Evap. Fan				$ 5.27
5	WP10449501		Motor-evap Fan   (Replaces: 10449501)				$ 240.54
6	W10116797		Assy, Fan-evap   (Replaces: 10855401)			Immediately	$ 8.56
7	10492701		Brkt, Lwr. Evap. Fan				$ 5.27
8	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
10	10432405		Cover, Evaporator		Appelez-nous	-
11	A3030356		Gasket		Appelez-nous	-
12	10442403		Thermostat-defrost, Closes 37		Appelez-nous	-
13	10991102		Heater, Evaporator		Appelez-nous	-
14	10686306		Ass`y, Ht Ex		Appelez-nous	-
15	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 148.18
16	R0170062		Assy,low Side		Appelez-nous	-
17	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
18	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
19	M0321204		Wire Tie		Appelez-nous	-
20	10422304		Shroud, Evap. Fan		Appelez-nous	-
22	10440710		Cover, Evaporator		Appelez-nous	-
23	10427712		Shield, Evap.		Appelez-nous	-
24	10442301		Clip, Evaporator		Appelez-nous	-
29	A3189348		Gasket, Foam		Appelez-nous	-
30	WP489399		Screw   (Replaces: M0232903)				$ 7.30
32	10586601		Clip, Ht Transfer		Appelez-nous	-
33	M0321209		Tie-elect.		Appelez-nous	-
35	A3030354		Gasket		Appelez-nous	-
NI	M0321041		Sleeve, Vinyl		Appelez-nous	-
