Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10925607W Ass`y, Fz Door(white) Appelez-nous -
2 B0523593 Insulation, Batt Frz. Dr. Appelez-nous -
3 10184301 Plug-nameplate W Appelez-nous -
4 10253509 Handle Assy Fz W Appelez-nous -
5 10456804 Gasket,fz Dr(white) Appelez-nous -
6 10184501 Pad Nameplate Appelez-nous -
7 10447501 Liner, Frz Door Appelez-nous -
8 10184401 Nameplate, Handle Appelez-nous -
9 10451302 Shim, Top Hinge Special Order $ 0.63

9 10451301 Shim, Top Hinge Special Order $ 1.08

9 10451303 Shim, Top Hinge Special Order $ 1.08

10 10185105 Hinge, Top Appelez-nous -
11 10961001 Bushing, Door (wht) Appelez-nous -
12 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 5.98

13 10686401 Plug Button Appelez-nous -
14 10562201 Shim, Center Hinge Appelez-nous -
14 10562203 Shim, Center Hinge Appelez-nous -
14 10562202 Shim, Center Hinge Appelez-nous -
15 10433510 Hinge-center Appelez-nous -
16 WPW10348409 Screw   (Replaces: M0221718) In-Stock Immediately $ 8.20

17 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

18 M0219730 Screw Special Order $ 7.65

19 10447102 Stop, Door Appelez-nous -
20 WPM0274057 Shim, Non Metal (wht)   (Replaces: M0274057) In-Stock Immediately $ 8.40

21 WP67006744 Pin, Hinge (ctr)   (Replaces: 10351001) Special Order $ 8.68

22 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

23 10444805 Cover, Hinge (white) Appelez-nous -
24 10183009 Shelf, Ref Door Appelez-nous -
25 10201801 Cover-handle Screw W Appelez-nous -
26 M0310308 Plug, Button (wht) Appelez-nous -
27 10202001 Clip, Retainer Appelez-nous -
28 10183971 Trim Door Shelf Appelez-nous -
29 10183929 Trim-door Shelf Appelez-nous -
30 10419005 Retainer, Door Appelez-nous -
NOTE: R134a Refrigerant System: This Refrigerant System Incorporates R134a Refrigerant And Approved Service Techniques And Equipment Should Be Applied If Sealed Sys Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

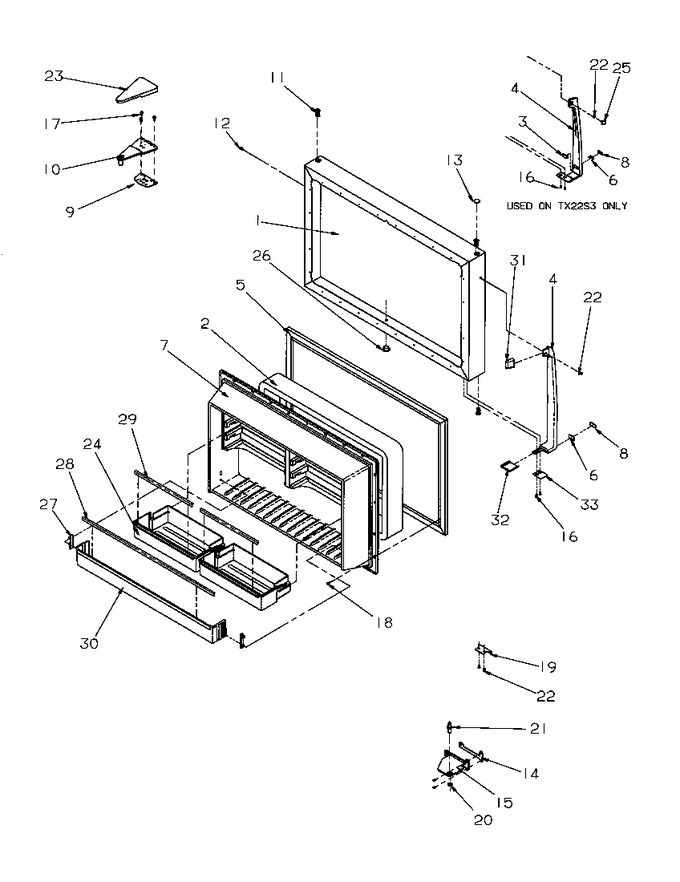

Diagram for TX22S3W (BOM: P1196002W W)
