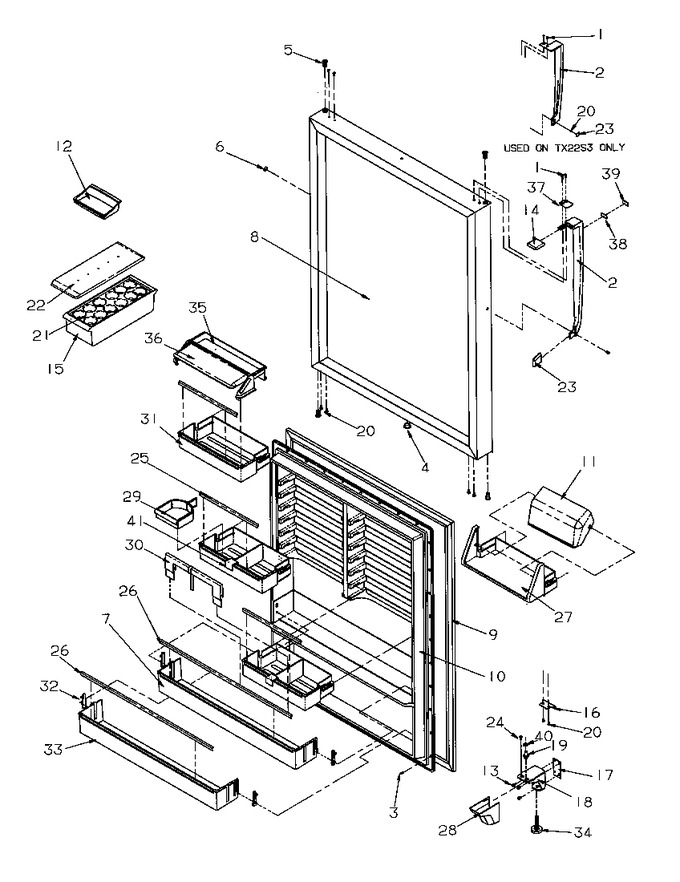

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw (Replaces: M0221718) |
|
Immediately | $ 8.20 | ||||
| 2 | 10253510 | Handle Assy Ref W |
|
- | |||||
| 3 | M0219730 | Screw |
|
$ 7.65 | |||||
| 4 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 5 | 10961001 | Bushing, Door (wht) |
|
- | |||||
| 6 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 7 | 10183111 | Retainer, Ref Door (no Decor) |
|
- | |||||
| 8 | 10925407W | Assy Ref Door Fm |
|
- | |||||
| 9 | WP12550111Q | Gasket,ref Dr(white) (Replaces: 10456803) |
|
$ 178.50 | |||||
| 10 | 10444601 | Liner, Refrig. Door |
|
- | |||||
| 11 | 10422607 | Door- Dairy |
|
- | |||||
| 12 | 10310901 | Tray, Butter |
|
- | |||||
| 13 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 15 | 10423128 | Bin-utility |
|
- | |||||
| 16 | 10447102 | Stop, Door |
|
- | |||||
| 17 | 10447903 | Shim, Btm Hinge |
|
- | |||||
| 17 | 10447904 | Shim Hinge |
|
- | |||||
| 18 | 10825301 | Hinge, Btm (white) |
|
- | |||||
| 19 | 67007018 | Pin, Hinge (btm) (Replaces: 10200801) |
|
Immediately | $ 8.62 | ||||
| 20 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 21 | 10436505 | Tray, Egg |
|
- | |||||
| 22 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 23 | 10201802 | Cover-handle Screw W |
|
- | |||||
| 24 | M0310330 | Plug, Button White |
|
- | |||||
| 25 | 10183929 | Trim-door Shelf |
|
- | |||||
| 26 | 10183971 | Trim Door Shelf |
|
- | |||||
| 27 | 10182702 | Shelf, Dairy |
|
- | |||||
| 28 | 10462702 | Cover, Hinge Lower (white) |
|
- | |||||
| 31 | 10183009 | Shelf, Ref Door |
|
- | |||||
| 32 | 10202001 | Clip, Retainer |
|
- | |||||
| 33 | 10419005 | Retainer, Door |
|
- | |||||
| 34 | W11177593 | Brake, Foot (Replaces: 10354001) |
|
$ 12.18 | |||||
| 40 | M0274058 | Shim, Non Metal (wht) |
|
$ 5.83 |
