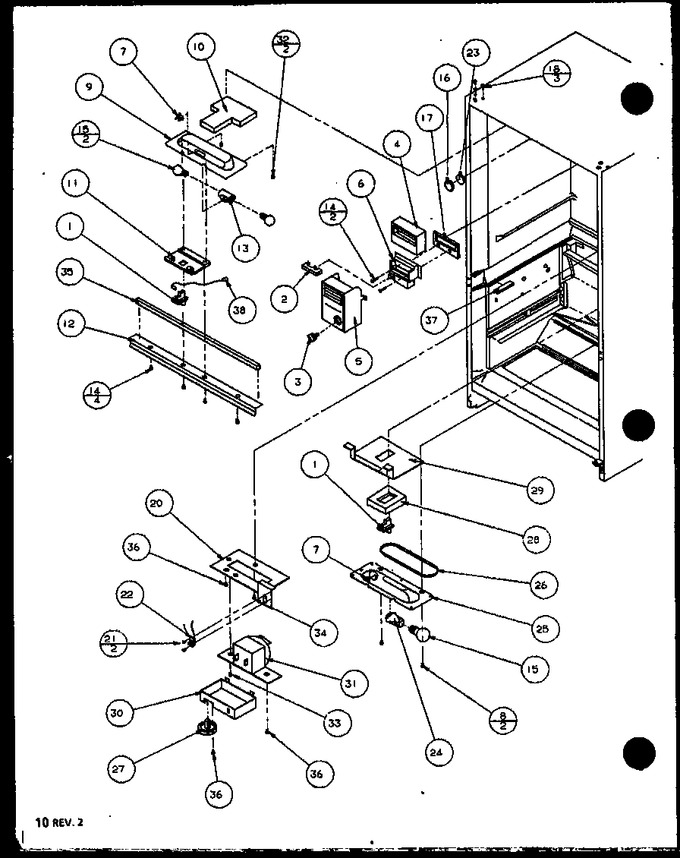

1	W11384469		Switch-nc Light   (Replaces: C3680307)			Immediately	$ 37.23
2	C8902601		Insert, Control		Appelez-nous	-
3	D7009802		Knob		Appelez-nous	-
4	D7687701		Insul. Damper		Appelez-nous	-
5	D7687512		Cover, Control		Appelez-nous	-
6	D7547403		Damper Control Kit		Appelez-nous	-
7	B5733302		Clip, Ground		Appelez-nous	-
8	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 7.94
9	D7716404		Housing-ref Light		Appelez-nous	-
10	C8778301		Insulation		Appelez-nous	-
11	D7297603		Cover, Light Sw		Appelez-nous	-
12	D7288109		Shield, Light		Appelez-nous	-
13	D7808602		Socket, Dual Lamp		Appelez-nous	-
14	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
15	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
16	M0310308		Plug, Button (wht)		Appelez-nous	-
17	B8345401		Gasket, Damper		Appelez-nous	-
18	WP12246608		Plug, Button (blk)   (Replaces: M0310727)			Immediately	$ 7.76
20	C8943302		Bracket, Control		Appelez-nous	-
21	M0010215		Pop Rivet		Appelez-nous	-
22	M0350101		Switch		Appelez-nous	-
23	B8362503		Insulation		Appelez-nous	-
24	D7714403		Socket-light		Appelez-nous	-
25	C8730102		Shield, Light		Appelez-nous	-
26	B5759607		Gasket		Appelez-nous	-
27	D7689901		Knob, Control		Appelez-nous	-
28	B8314801		Gasket		Appelez-nous	-
29	C8940402		Barrier, Light Switch		Appelez-nous	-
31	C8946701		Control Temp		Appelez-nous	-
32	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 6.95
33	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.83
34	M0253916		Screw		Appelez-nous	-
35	A3030328		Gasket (1= 1ft.)		Appelez-nous	-
36	M0216531		Screw		Appelez-nous	-
37	B5759618		Gasket Air Block		Appelez-nous	-
38	B5781002		Jumper Wire		Appelez-nous	-
