Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10291801 Harness, Mullion Appelez-nous -
2 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 6.95

3 B5759617 Gasket, Sealing Appelez-nous -
4 D7874703 Cover Evap Appelez-nous -
5 WP10442411 Thermostat, Defrost   (Replaces: C8978402) In-Stock Immediately $ 44.02

6 D7718301 Heater Defrost Appelez-nous -
7 D7759001 Heat Exchanger Appelez-nous -
8 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 7.90

9 R0170030 Assy,low Side Appelez-nous -
10 D7711701 Harness Liner Appelez-nous -
11 B0523584 Insulation Per Ft. Appelez-nous -
12 D7691116 Evap Fan Schroud Appelez-nous -
13 A3189320 Gasket, Foam Appelez-nous -
14 M0253916 Screw Appelez-nous -
15 WP12990527 Screw   (Replaces: M0219916) In-Stock Immediately $ 7.94

16 D7679402 Tray, Drip Appelez-nous -
17 C8953701 Barrier Appelez-nous -
18 A3195601 Clamp-wiring Appelez-nous -
19 D7742901 Heater-ref Bottom Appelez-nous -
20 A3263905 Gasket-per Ft Appelez-nous -
21 M0103502 Clamp Appelez-nous -
22 10367101 Frame Ctr Brk Appelez-nous -
23 B8373201 Block Evap Coil Appelez-nous -
24 C8842522 Mullion, Center (black) Appelez-nous -
25 D7654507 Heater-mullion Appelez-nous -
26 D7681701 Bottom Ref. Appelez-nous -
27 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 43.97

28 C8881301 Brkt Evap Fan Appelez-nous -
29 WPC8891605 Motor, Evap Fan   (Replaces: C8891601) Special Order $ 328.40

30 C8927801 Blade, Evap Fan Appelez-nous -
31 D7524501 Brkt Evap Fan Shroud Appelez-nous -
32 10377701 Block-waxed Ctr Appelez-nous -
34 A3138301 Grommet Appelez-nous -
35 A3030328 Gasket (1= 1ft.) Appelez-nous -
36 D7680901 Duct, Returnair Appelez-nous -
37 B8358502 Gasket Appelez-nous -
38 A4539602 Pop Rivet Appelez-nous -
39 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 9.38

41 D7874402 Cover-fl Tb/plug Appelez-nous -
42 B5759616 Gasket Appelez-nous -
43 M0585203 Tie, Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

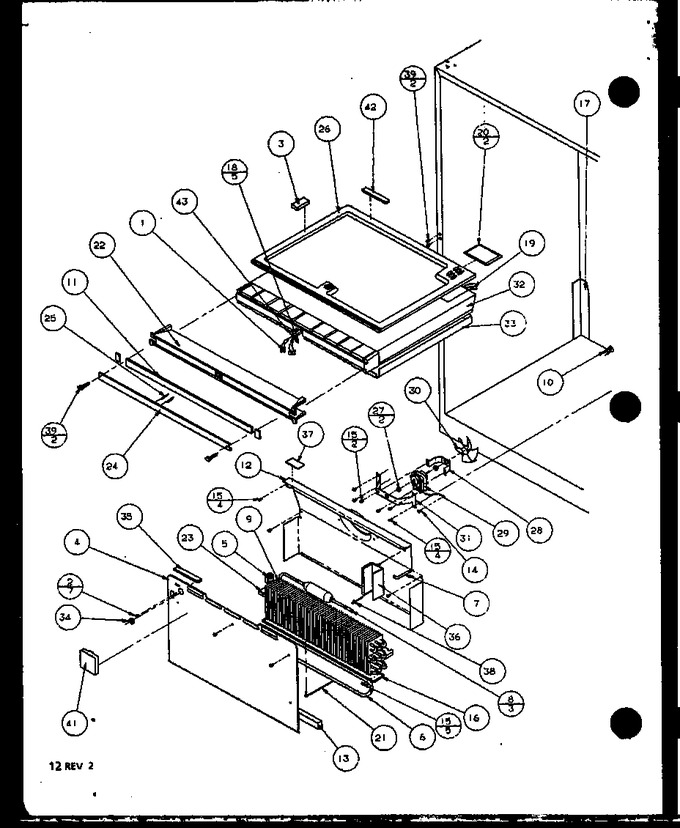

Diagram for 86065 (BOM: P1125514W E)
