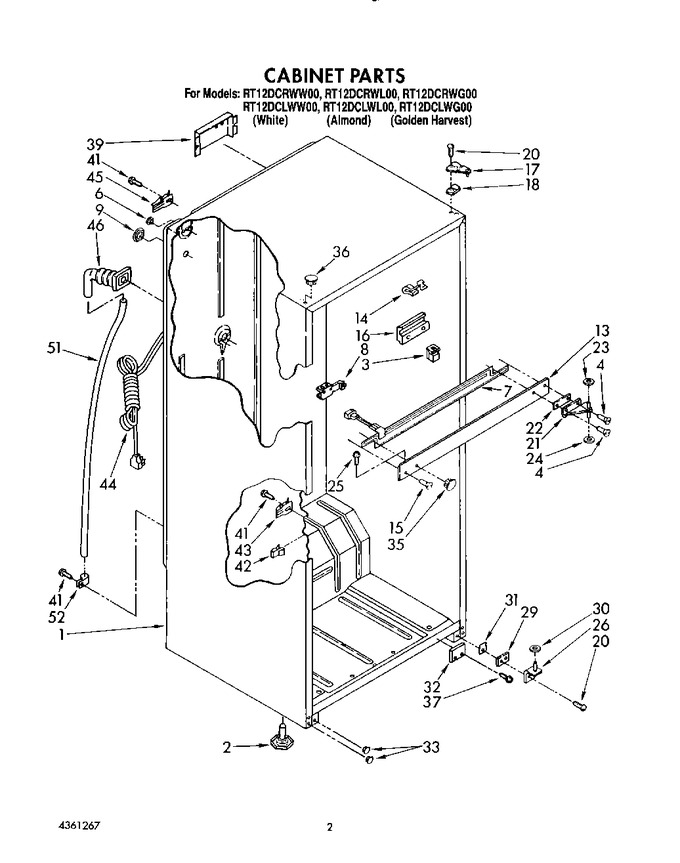

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11117769		Leveler (4)   (Replaces: 939005)			Immediately	$ 19.37
3	1116484		Spacer (2)		Appelez-nous	-
4	489179		Screw		Appelez-nous	-
6	536195		Hole Plug		Appelez-nous	-
7	1108480		Heater, Mullion		Appelez-nous	-
8	935692		Center Rail, Bracket (2)		Appelez-nous	-
9	655411		Hole Plug		Appelez-nous	-
13	944873		Center, Rail (almond)		Appelez-nous	-
13	944871		Center Rail (harvest Gold)		Appelez-nous	-
13	944868		Center, Rail (white)		Appelez-nous	-
14	1114428		Breaker, Trim Clip		Appelez-nous	-
15	WP488729		Screw   (Replaces: 488783)			Immediately	$ 8.28
16	2151428		Center, Rail Shim		Appelez-nous	-
17	1100513		Shim, Hinge Top		Appelez-nous	-
18	1100511		Shim, Hinge Top		Appelez-nous	-
20	489327		Screw, 10-32 X 23/32		Appelez-nous	-
21	944788		Hinge, Center				$ 32.65
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
24	WP488296		Washer, 11/64   (Replaces: 488296)				$ 7.55
25	WP488729		Screw, 8 X 1/2   (Replaces: 487900)			Immediately	$ 8.28
26	944776		Hinge Butt (bottom R.h.)		Appelez-nous	-
26	944778		Hinge Butt (bottom L.h.)		Appelez-nous	-
29	935737		Shim, Bottom		Appelez-nous	-
30	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
31	935743		Tap Plate		Appelez-nous	-
32	935711		Rail, Cover (almond)		Appelez-nous	-
32	935707		Rail, Cover (harvest Gold)		Appelez-nous	-
33	941419		Hole, Plug (2) (harvest Gold)		Appelez-nous	-
33	941417		Hole, Plug (2) (almond)		Appelez-nous	-
33	941416		Hole, Plug (2) (white)		Appelez-nous	-
35	1119708		Hole Plug (2) (harvest Gold)		Appelez-nous	-
35	1119707		Hole Plug (2) (white)		Appelez-nous	-
35	1119709		Hole Plug (2) (almond)		Appelez-nous	-
36	842031		Hole Plug (3) (white)		Appelez-nous	-
36	989876		Hole Plug (3) (harvest Gold)		Appelez-nous	-
36	989195		Hole Plug (3) (almond)		Appelez-nous	-
37	488895		Screw		Appelez-nous	-
39	946218		Cover, Wiring		Appelez-nous	-
41	WP489478		Screw   (Replaces: 489242)				$ 8.18
42	W10812038		Clip, Wire (4)   (Replaces: 939054)		Appelez-nous	-
43	549193		Clamp-service Cord				$ 14.06
44	937360		Cord, Service		Appelez-nous	-
45	937357		Clamp		Appelez-nous	-
46	937062		Fitting, Drain		Appelez-nous	-
51	8316810		Tube, Drain   (Replaces: 1110680)				$ 125.72
52	488946		Clamp (2)				$ 21.47
