SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Unit


06 - Door, Lit/optional


07 - Shelf

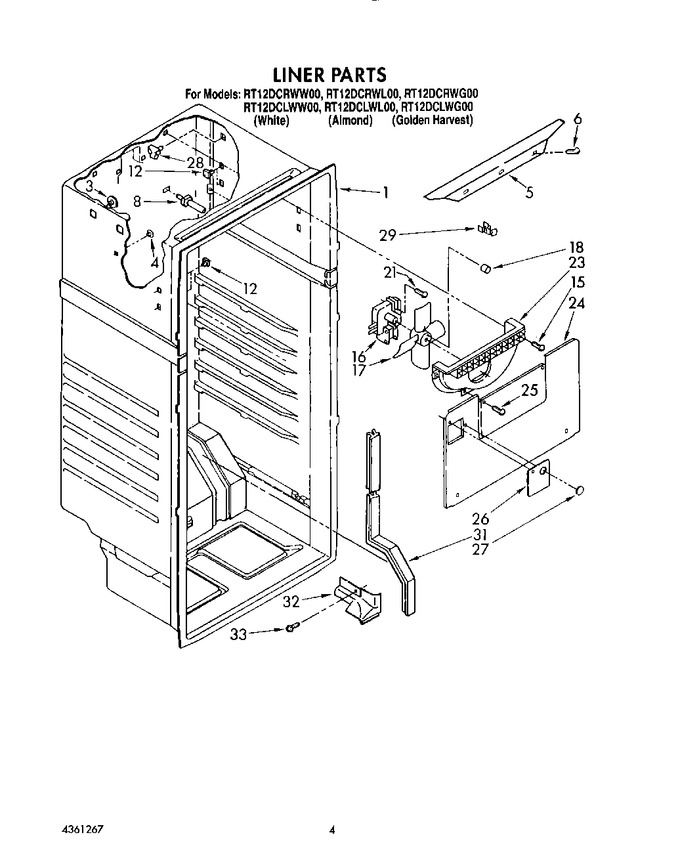

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
3	2152241		Hole Plug		Appelez-nous	-
4	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
5	2150914		Baffle, Liner Top		Appelez-nous	-
6	489240		Screw		Appelez-nous	-
8	1108519		Stud, Evaporator (2)		Appelez-nous	-
12	1108519		Stud, Evaporator (2)		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 8.18
16	1108698		Motor, Fan		Appelez-nous	-
17	1108573		Blade, Fan		Appelez-nous	-
18	992953		Ring, Compression		Appelez-nous	-
21	489165		Screw, 8 X 1-1/4 (2)		Appelez-nous	-
23	1108518		Scroll, Fan		Appelez-nous	-
24	1108509		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw   (Replaces: 489196)			Immediately	$ 8.28
26	WP2217784		Hole Cover, Evaporator   (Replaces: 1120124)				$ 47.22
27	1103725		Hole Plug		Appelez-nous	-
28	939203		Support, Stud (2)		Appelez-nous	-
29	1108523		Clip, Ground		Appelez-nous	-
31	1110678		Cover Tube, Rear		Appelez-nous	-
32	941776		Cover Tube, Bottom		Appelez-nous	-
33	WP488729		Screw   (Replaces: 489196)			Immediately	$ 8.28

    View Diagram in Separate Window       Print Part List
